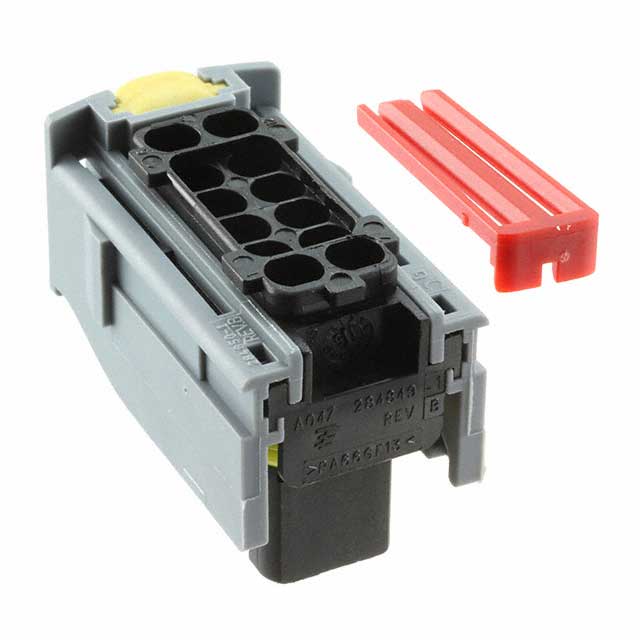

284848-1
Or copy the link below:
- Mfr.Part #
- 284848-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT HSG 12POS 5.00MM
- Stock
- 190
- In Stock ：
- 190
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Rectangular Connector Housings
- Current Rating :
- 20A
- Contact Type :
- Female Socket
- Packaging :
- Bulk
- RoHS Status :
- RoHS Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Width :
- 26.5938mm
- Housing Material :
- Polyamide
- Height :
- 32.5882mm
- Depth :
- 34.5mm
- Pitch :
- 0.197 5.00mm
- Min Operating Temperature :
- -13°C
- Color :
- Black
- Factory Lead Time :
- 16 Weeks
- Mount :
- Cable, Free Hanging
- Ratings :
- IP67
- Mounting Type :
- Free Hanging (In-Line)
- Hybrid Connector :
- yes
- ELV :
- Compliant
- Insulation Material :
- PBT
- Connector Type :
- Receptacle
- Note :
- Contacts Not Included
- Orientation :
- Straight
- Number of Rows :
- 2
- Number of Positions :
- 12
- Published :
- 2008
- Mating Tab Width :
- 1.6002mm
- Length :
- 45.7962mm
- Contact Termination :
- Crimp
- Max Operating Temperature :
- 257°C
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Series :
- MCP
- Row Spacing :
- 0.236 (6.00mm)
- Voltage - Rated :
- 24V
- Circuit Application :
- Signal
- Polarized :
- No
- Datasheets
- 284848-1
2 Rows Receptacle Bulk Black 12 Positions Free Hanging (In-Line) Female Socket Crimp MCP Polyamide
284848-1 Overview
Packaging is Receptacle.Free Hanging (In-Line) is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the MCP Series, it can be found in this category.In this case, Cable, Free Hanging mounts the part.
284848-1 Features
MCP series
284848-1 Applications
There are a lot of TE Connectivity AMP Connectors
284848-1 Rectangular Connectors applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
