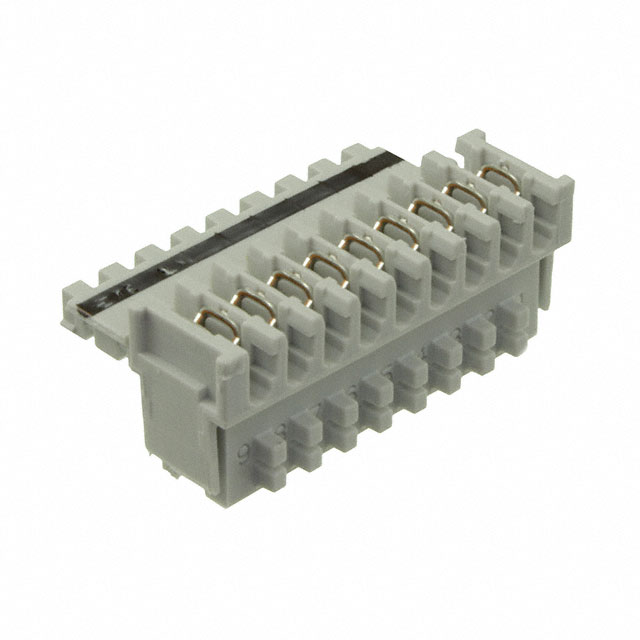

284865-9
Or copy the link below:
- Mfr.Part #
- 284865-9
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 9POS IDC 22-24AWG TIN
- Stock
- 6,220
- In Stock ：
- 6,220
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Free Hanging, Panel Mount
- Contact Current Rating :
- 2A
- Series :
- DuoPlug
- Current Rating :
- 2A
- Connector Type :
- Receptacle
- Wire/Cable Diameter :
- 2.032 mm
- Factory Lead Time :
- 17 Weeks
- Cable Termination :
- IDC
- Operating Supply Voltage :
- 63V
- Published :
- 2004
- PCB Thickness :
- 1.4986mm
- Wire Type :
- Discrete
- Orientation :
- RIGHT ANGLE
- Contact Material :
- Bronze
- Contact Type :
- Female Blade Socket
- PCB Mounting Orientation :
- RIGHT ANGLE
- Circuit Application :
- Signal
- Flammability Rating :
- UL94 V-0
- Max Operating Temperature :
- 110°C
- Pitch :
- 0.098 2.50mm
- Housing Material :
- PBT
- Number of Positions :
- 9
- RoHS Status :
- RoHS Compliant
- Feature :
- Mates to PCB
- Contact Finish :
- Tin
- Mounting Type :
- Free Hanging (In-Line), Right Angle
- Height :
- 7.35mm
- ELV :
- Compliant
- Reach Compliance Code :
- Unknown
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Min Operating Temperature :
- -40°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Rows :
- 1
- Preloaded :
- yes
- Insulation Diameter :
- 1.2954 mm
- Packaging :
- Bulk
- Plating Thickness :
- 10μm
- Wire Gauge :
- 22-24 AWG
- Color :
- Black
- Datasheets
- 284865-9
284865-9 datasheet pdf and Rectangular Connectors - Free Hanging, Panel Mount product details from TE Connectivity AMP Connectors stock available at Xinshop
