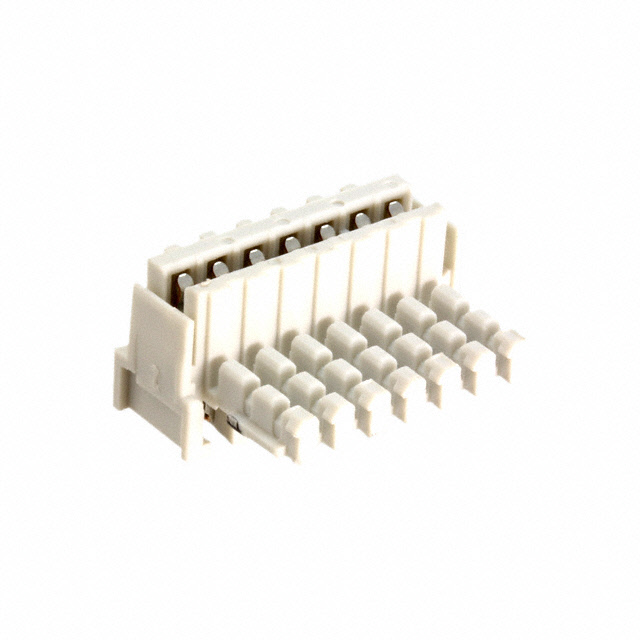

284865-7
Or copy the link below:
- Mfr.Part #
- 284865-7
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 7POS IDC 22-24AWG TIN
- Stock
- 17,917
- In Stock ：
- 17,917
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Free Hanging, Panel Mount
- Circuit Application :
- Signal
- PCB Mounting Orientation :
- RIGHT ANGLE
- Fastening Type :
- Latch
- Connector Type :
- Receptacle
- ELV :
- Compliant
- Wire Type :
- Discrete
- Wire Gauge :
- 22-24 AWG
- Insulation Diameter :
- 1.2954 mm
- Max Operating Temperature :
- 110°C
- Pitch :
- 0.098 2.50mm
- Published :
- 2004
- Orientation :
- RIGHT ANGLE
- Series :
- DuoPlug
- Plating Thickness :
- 10μm
- Feature :
- Mates to PCB
- PCB Thickness :
- 1.4986mm
- Factory Lead Time :
- 14 Weeks
- Min Operating Temperature :
- -40°C
- Number of Rows :
- 1
- Operating Supply Voltage :
- 63V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Packaging :
- Bulk
- Mount :
- Free Hanging
- Height :
- 7.35mm
- Housing Material :
- PBT
- Mounting Type :
- Free Hanging (In-Line), Right Angle
- Contact Finish :
- Tin
- Contact Current Rating :
- 2A
- Reach Compliance Code :
- Unknown
- Cable Termination :
- IDC
- Preloaded :
- yes
- Contact Type :
- Female Blade Socket
- Housing Color :
- Black
- Contact Material :
- Bronze
- Flammability Rating :
- UL94 V-0
- RoHS Status :
- RoHS Compliant
- Number of Positions :
- 7
- Current Rating :
- 2A
- Wire/Cable Diameter :
- 2.032 mm
- Color :
- Red
- Datasheets
- 284865-7
284865-7 datasheet pdf and Rectangular Connectors - Free Hanging, Panel Mount product details from TE Connectivity AMP Connectors stock available at Xinshop
