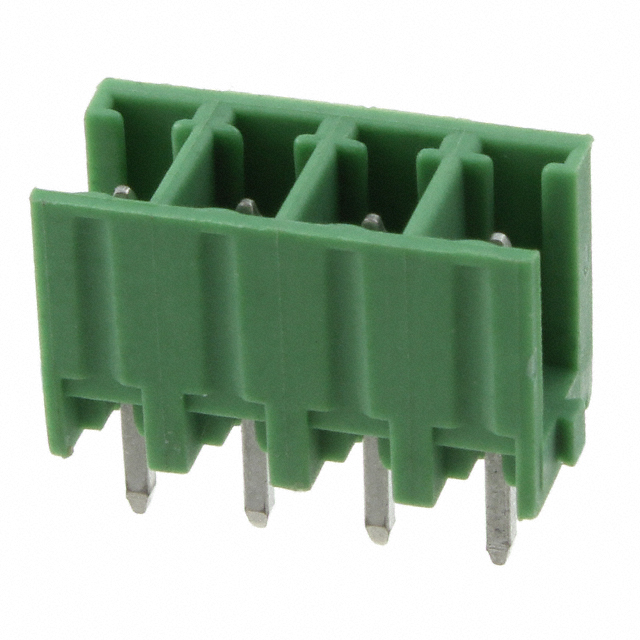

284518-4

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Plugs and Sockets

Voltage - Rated :

300V

Shrouding :

yes

Number of Positions :

4

Current Rating :

11A

Type :

Header, Male Pins, Shrouded (2 Side)

Safety Approval :

UL

Contact Mating Finish :

Tin

Depth :

7.3mm

Color :

Green

ECCN Code :

EAR99

Flammability Rating :

UL94 V-0

Current :

11A

Feature :

Interlocking (Side)

Package / Case :

Module

Contact Material :

Phosphor Bronze

Header Orientation :

Vertical

Contact Tail Length :

0.134 3.40mm

Number of Ways :

14

Termination Style :

Solder

Housing Material :

Polyamide (PA66), Nylon 6/6

ELV :

Compliant

Radiation Hardening :

No

Lifecycle Status :

ACTIVE (Last Updated: 2 weeks ago)

Material Flammability Rating :

UL94 V-0

RoHS Status :

RoHS Compliant

Length - Tail :

3.4mm

Number of Rows :

1

Mounting Type :

Through Hole

Packaging :

Bulk

Pitch :

0.150 3.81mm

Voltage - Rated AC :

300V

Insulation Height :

0.362 9.20mm

Series :

Buchanan

Max Current Rating :

11A

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Additional Feature :

POLARIZED

Factory Lead Time :

12 Weeks

Number of Levels :

1

Operating Temperature :

-40°C~110°C

Number of Decks :

1

Connector Type :

Header

Max Voltage Rating (AC) :

300V

Fastening Method :

Connector

Published :

2007

Length :

15.24mm

Number of Positions Per Level :

4

Voltage :

300V

Mount :

Through Hole
