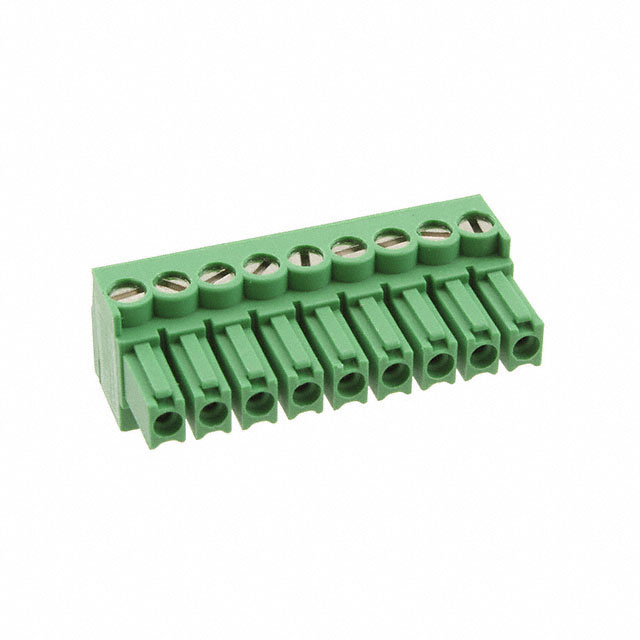

284506-9

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Plugs and Sockets

Screw Size :

M2

Series :

Buchanan

Voltage - UL :

300V

Number of Circuits :

9

Number of Positions Per Level :

9

Contact Plating :

Tin

Contact Material :

Phosphor Bronze

Plug Wire Entry :

180°

Mounting Type :

Free Hanging (In-Line)

Voltage :

300V

Voltage - Rated :

300V

Factory Lead Time :

15 Weeks

Wire Gauge (Min) :

14 AWG

Color :

Green

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Published :

2007

Number of Positions :

9

Depth :

15.5mm

Wire Gauge or Range - mm² :

0.05-3mm2

Torque - Screw :

0.31 Nm (2.7 Lb-In)

Insulation Height :

0.437 11.10mm

Termination :

Screw

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Wire Strip Length :

5-6mm

Number of Levels :

1

Current - UL :

11A

Wire Gauge (Max) :

30 AWG

Number of Contacts :

9

Lead Free :

Not Applicable

Material Flammability Rating :

UL94 V-0

RoHS Status :

RoHS Compliant

Termination Style :

Screw - Rising Cage Clamp

Number of Rows :

1

Current Rating :

11A

Feature :

Side Stacking

Length :

31.5mm

Wire Gauge or Range - AWG :

14-30 AWG

Type :

Plug, Female Sockets

Housing Color :

Green

Mount :

Through Hole

Packaging :

Bulk

Thread Size :

M2

ELV :

Compliant

Max Current Rating :

11A

Connector Type :

PLUG

Current :

11A

Flammability Rating :

UL94 V-0

Pitch :

0.138 3.50mm

Positions Per Level :

9

Contact Mating Finish :

Tin

Housing Material :

Polyamide (PA66), Nylon 6/6

Operating Temperature :

-40°C~110°C

Orientation :

RIGHT ANGLE

Radiation Hardening :

No

Max Supply Voltage (AC) :

300V

Voltage - Rated AC :

300V
