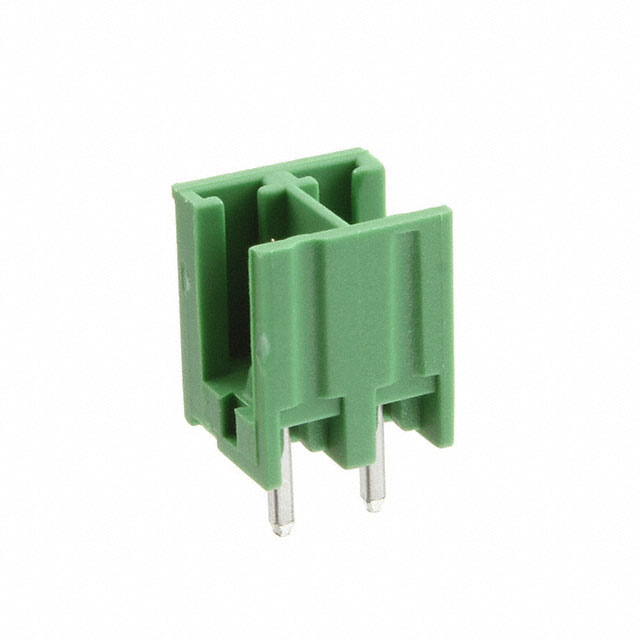

284518-2
Or copy the link below:
- Mfr.Part #
- 284518-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Module
- Datasheet
- Download
- Description
- TERM BLOCK HDR 2POS VERT 3.81MM
- Stock
- 27,637
- In Stock ：
- 27,637
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Plugs and Sockets
- Packaging :
- Bulk
- Shrouding :
- yes
- Additional Feature :
- POLARIZED
- HTS Code :
- 8536.69.40.40
- Safety Approval :
- UL
- Number of Ways :
- 22
- Number of Rows :
- 1
- Number of Positions Per Level :
- 2
- Lead Free :
- Lead Free
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Package / Case :
- Module
- Color :
- Green
- Mounting Type :
- Through Hole
- Contact Material :
- Phosphor Bronze
- Connector Type :
- Header
- Current :
- 11A
- Contact Mating Finish :
- Tin
- Header Orientation :
- Vertical
- Material Flammability Rating :
- UL94 V-0
- Lifecycle Status :
- ACTIVE (Last Updated: 6 days ago)
- Published :
- 2007
- Voltage - Rated AC :
- 300V
- Current Rating :
- 11A
- ECCN Code :
- EAR99
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Levels :
- 1
- RoHS Status :
- RoHS Compliant
- Contact Tail Length :
- 0.134 3.40mm
- Length - Tail :
- 3.4mm
- Operating Temperature :
- -40°C~110°C
- Flammability Rating :
- UL94 V-0
- Voltage :
- 300V
- Number of Decks :
- 1
- Pitch :
- 0.150 3.81mm
- Max Current Rating :
- 11A
- Radiation Hardening :
- No
- Termination Style :
- Solder
- Feature :
- Interlocking (Side)
- Mount :
- Through Hole
- ELV :
- Compliant
- Factory Lead Time :
- 12 Weeks
- Fastening Method :
- Connector
- Series :
- Buchanan
- Type :
- Header, Male Pins, Shrouded (2 Side)
- Voltage - Rated :
- 300V
- Insulation Height :
- 0.362 9.20mm
- Datasheets
- 284518-2
Bulk 0.150 3.81mm Green 1 Levels Through Hole Header, Male Pins, Shrouded (2 Side) Buchanan Polyamide (PA66), Nylon 6/6 Tin Phosphor Bronze
284518-2 Overview
This product is packaged in a Header box.Through Hole indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the Buchanan Series.Furthermore, there are other features such as POLARIZED, to name a few.Module refers to a package enclosing a device.In many ways, Interlocking (Side) makes it more powerful.By Through Hole, the part is mounted.Operating temperature is set to -40°C~110°C.It is a part that shares many benefits with other products from the Header, Male Pins, Shrouded (2 Side) line.
284518-2 Features
Buchanan series
284518-2 Applications
There are a lot of TE Connectivity AMP Connectors
284518-2 Terminal Blocks applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
