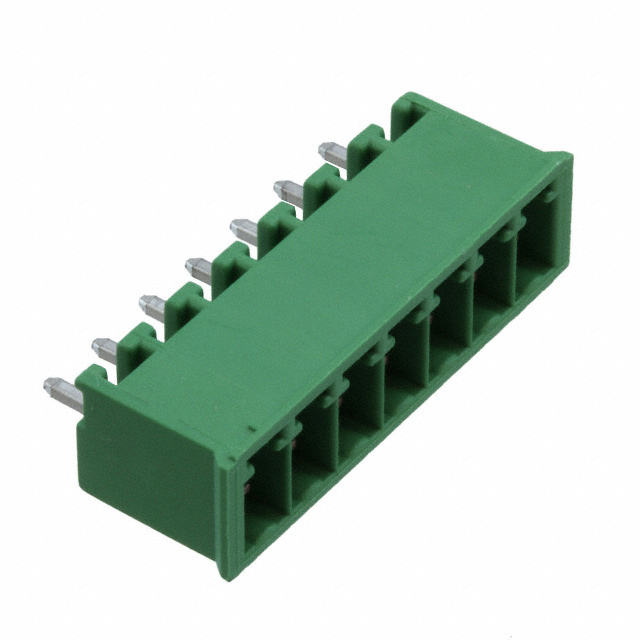

284514-7
Or copy the link below:
- Mfr.Part #
- 284514-7
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 7POS VERT 3.5MM
- Stock
- 1,173
- In Stock ：
- 1,173
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Plugs and Sockets
- Color :
- Green
- Type :
- Header, Male Pins, Shrouded (4 Side)
- Published :
- 2007
- Connector Type :
- Header
- Number of Ways :
- 17
- Number of Positions :
- 7
- Insulation Height :
- 0.362 9.20mm
- Length :
- 26.5mm
- Voltage - Rated :
- 300V
- Termination Style :
- Solder
- ELV :
- Compliant
- HTS Code :
- 8536.69.40.40
- Current Rating :
- 11A
- Max Current Rating :
- 11A
- Number of Levels :
- 1
- Material Flammability Rating :
- UL94 V-0
- Fastening Method :
- Connector
- Length - Tail :
- 3.4mm
- Safety Approval :
- UL
- Factory Lead Time :
- 12 Weeks
- Contact Mating Finish :
- Tin
- Number of Poles :
- 7
- Depth :
- 7.2mm
- Mount :
- Through Hole
- Mounting Type :
- Through Hole
- Voltage :
- 300V
- Number of Decks :
- 1
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Shrouding :
- yes
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Pitch :
- 0.138 3.50mm
- Additional Feature :
- POLARIZED, 94V-0, PA66
- RoHS Status :
- RoHS Compliant
- Radiation Hardening :
- No
- Packaging :
- Bulk
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Operating Temperature :
- -40°C~110°C
- Contact Material :
- Phosphor Bronze
- Number of Rows :
- 1
- Voltage - Rated AC :
- 300V
- Width :
- 7.25mm
- Flammability Rating :
- UL94 V-0
- Max Voltage Rating (AC) :
- 300V
- ECCN Code :
- EAR99
- Series :
- Buchanan
- Header Orientation :
- Vertical
- Lead Free :
- Lead Free
- Current :
- 11A
- Datasheets
- 284514-7
Bulk 0.138 3.50mm Green 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) Buchanan Polyamide (PA66), Nylon 6/6 Tin Phosphor Bronze
284514-7 Overview
A Header package is included with it.Its mounting type is Through Hole.Packaging is performed using a Bulk case.It is part of the Buchanan Series of products.Additionally, there are other features, such as POLARIZED, 94V-0, PA66.Through Hole mounts the part.There is no operating temperature for the device.Several of the benefits of this part are also shared by other Header, Male Pins, Shrouded (4 Side) products.
284514-7 Features
Buchanan series
284514-7 Applications
There are a lot of TE Connectivity AMP Connectors
284514-7 Terminal Blocks applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
