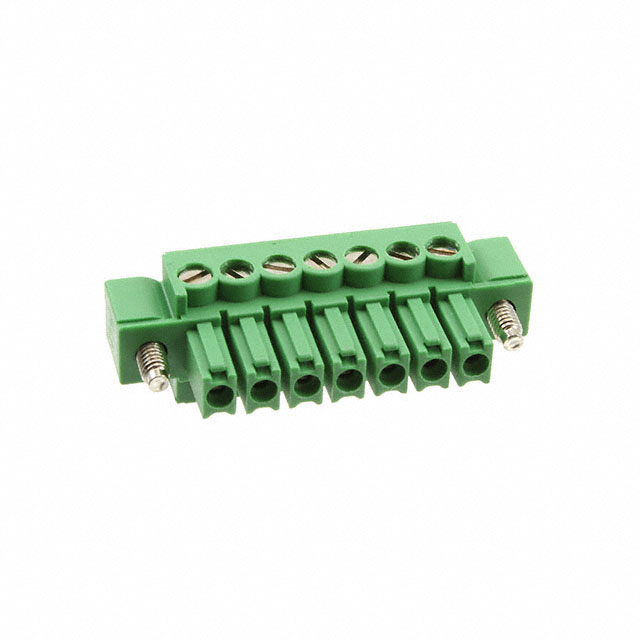

284510-7
Or copy the link below:
- Mfr.Part #
- 284510-7
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK PLUG 7POS STR 3.5MM
- Stock
- 795
- In Stock ：
- 795
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Plugs and Sockets
- Mount :
- Free Hanging, Through Hole
- Radiation Hardening :
- No
- Factory Lead Time :
- 15 Weeks
- Feature :
- Mating Flange
- Wire Gauge or Range - mm² :
- 0.05-3mm2
- Number of Contacts :
- 7
- Plug Wire Entry :
- 180°
- Series :
- Buchanan
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Flammability Rating :
- UL94 V-0
- Number of Ways :
- 17
- Wire Gauge (Max) :
- 30 AWG
- Termination :
- Solder
- ELV :
- Compliant
- Connector Type :
- PLUG
- Wire Gauge (Min) :
- 30 AWG
- Wire Strip Length :
- 5-6mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Voltage - Rated :
- 300V
- Length :
- 30mm
- Lead Free :
- Not Applicable
- Orientation :
- RIGHT ANGLE
- Color :
- Green
- Current :
- 11A
- Voltage - Rated AC :
- 300V
- ECCN Code :
- EAR99
- HTS Code :
- 8536.69.40.40
- Number of Rows :
- 1
- Contact Material :
- Phosphor Bronze
- Termination Style :
- Screw - Rising Cage Clamp
- Voltage :
- 300V
- Operating Temperature :
- -40°C~110°C
- Additional Feature :
- POLARIZATION AVAILABLE
- Pitch :
- 0.138 3.50mm
- Type :
- Plug, Female Sockets
- Number of Decks :
- 1
- Wire Gauge or Range - AWG :
- 14-30 AWG
- Max Current Rating :
- 11A
- Packaging :
- Bulk
- Number of Levels :
- 1
- Current Rating :
- 11A
- Published :
- 2004
- Safety Approval :
- UL
- Depth :
- 15.5mm
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Contact Mating Finish :
- Tin
- Mounting Type :
- Free Hanging (In-Line)
- Material Flammability Rating :
- UL94 V-0
- Insulation Height :
- 0.437 11.10mm
- Torque - Screw :
- 0.31 Nm (2.7 Lb-In)
- Screw Size :
- M2
- Number of Positions :
- 7
- Max Supply Voltage (AC) :
- 300V
- RoHS Status :
- RoHS Compliant
- Datasheets
- 284510-7
Bulk 0.138 3.50mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets Buchanan Polyamide (PA66), Nylon 6/6 Tin Phosphor Bronze
284510-7 Overview
Packaging for this item is Plug.There is a mounting type of Free Hanging (In-Line) for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the Buchanan Series.Moreover, there are a number of other features, including POLARIZATION AVAILABLE, to name just a few.In many ways, its Mating Flange feature makes it more powerful.Free Hanging, Through Hole is used to mount the part.In this case, the device operates at -40°C~110°C Operating Temperature.There are a number of benefits that this part has in common with other Plug, Female Sockets products.
284510-7 Features
Buchanan series
284510-7 Applications
There are a lot of TE Connectivity AMP Connectors
284510-7 Terminal Blocks applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
