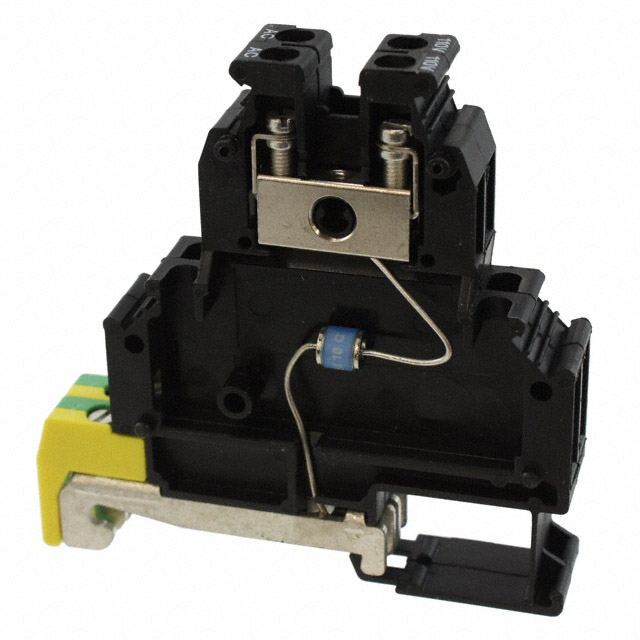

2765602

Manufacturer :

Phoenix Contact

Product Category :

Din Rail, Channel

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Weight :

19.14001g

Number of Levels :

2; 1 Grounded

Additional Feature :

PA, UL 94V-2

Depth :

69.5mm

Color :

Black

Height :

69.5mm

ECCN Code :

EAR99

Wire Cross Section :

4 mm2

Number of Decks :

1

Max Operating Temperature :

85°C

Voltage - Rated :

110V

Approval Agency :

CSA

Stripping Length :

8mm

Number of Ways :

1

Number of Rows :

1

Width :

6.2mm

Series :

TRABTECH TT

Type :

Feed Through

Length :

66.5mm

Reach Compliance Code :

Unknown

Wire Gauge (Max) :

12 AWG

Material - Insulation :

Polyamide (PA), Nylon

RoHS Status :

RoHS Compliant

Safety Approval :

UL

Material Flammability Rating :

UL94 V-2

Wire Gauge or Range - mm² :

0.2-4mm2

Number of Positions :

3

Feature :

Gas Filled Surge Arrestor

Published :

2012

Current Rating :

2A

Pbfree Code :

yes

Min Operating Temperature :

-40°C

Termination Style :

Screw

Mount :

DIN Rail

Factory Lead Time :

3 Weeks

Flammability Rating :

UL94 V-2

Wire Gauge (Min) :

24 AWG
