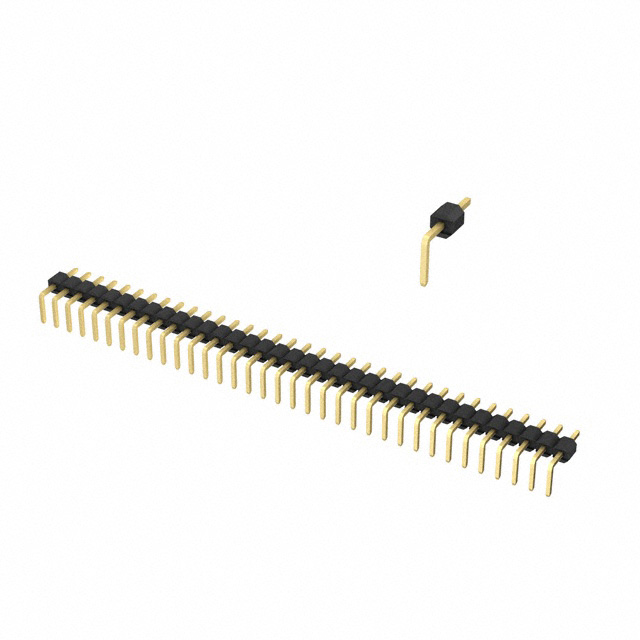

27633502RP2
Or copy the link below:
- Mfr.Part #
- 27633502RP2
- Manufacturer
- NorComp
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 35POS 2MM
- Stock
- 44,939
- In Stock ：
- 44,939
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- NorComp
- Product Category :
- Headers, Male Pins
- UL Flammability Code :
- 94V-0
- Contact Type :
- Male Pin
- Contact Finish Thickness - Mating :
- Flash
- Operating Temperature :
- -40°C~105°C
- DIN Conformance :
- No
- MIL Conformance :
- No
- Terminal Pitch :
- 2mm
- Connector Type :
- Header
- Contact Finish - Mating :
- Gold
- Contact Length - Mating :
- 0.150 3.81mm
- Contact Length - Post :
- 0.118 3.00mm
- Number of Positions :
- 35
- Mount :
- Through Hole
- Contact Shape :
- Square
- Shrouding :
- Unshrouded
- Mixed Contacts :
- No
- Current Rating (Amps) :
- 1A
- Published :
- 2007
- Series :
- 2763
- Housing Material :
- Nylon
- Insulation Material :
- Polyamide (PA6T), Nylon 6T
- Style :
- Board to Board or Cable
- Filter Feature :
- No
- Packaging :
- Bulk
- Insulation Height :
- 0.059 1.50mm
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Option :
- GENERAL PURPOSE
- Pitch - Mating :
- 0.079 2.00mm
- Number of Rows :
- 1
- Number of Positions Loaded :
- All
- RoHS Status :
- ROHS3 Compliant
- Housing Color :
- Black
- Material Flammability Rating :
- UL94 V-0
- Height :
- 1.5mm
- Lead Free :
- Lead Free
- Termination :
- Solder
- Contact Material :
- COPPER ALLOY
- IEC Conformance :
- No
- Mounting Type :
- Through Hole, Right Angle
- Fastening Type :
- Push-Pull
- Datasheets
- 27633502RP2
27633502RP2 Documents
2763 Series 1-Row Header Solder Copper Alloy Bulk Through Hole, Right Angle Gold Polyamide (PA6T), Nylon 6T 35-Position Board to Board or Cable 0.059 1.50mm Height
27633502RP2 Overview
The product is packaged in Header.This device is mounted in the Through Hole, Right Angle position.It has been determined that a Bulk case is necessary to package the product.There is a product in the 2763 Series.Part Through Hole is mounted to the part.As a result, the device runs at -40°C~105°C Operating Temperature.
27633502RP2 Features
2763 series
27633502RP2 Applications
There are a lot of NorComp Inc.
27633502RP2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
