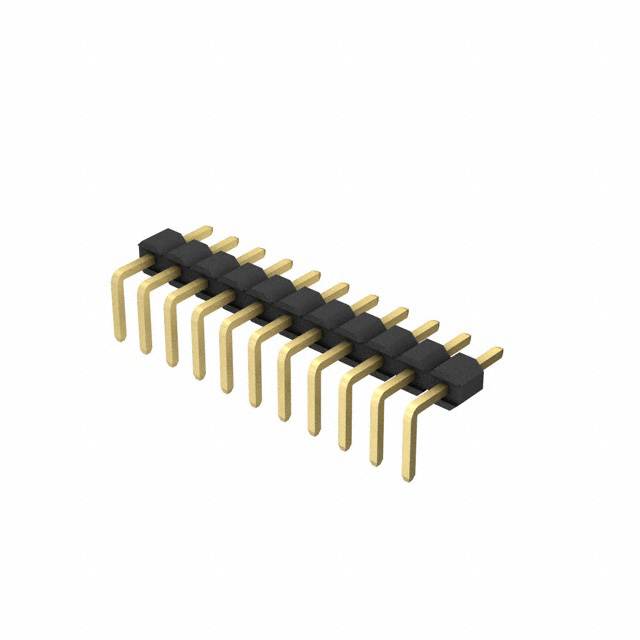

27631102RP2
Or copy the link below:
- Mfr.Part #
- 27631102RP2
- Manufacturer
- NorComp
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 11POS 2MM
- Stock
- 7,359
- In Stock ：
- 7,359
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- NorComp
- Product Category :
- Headers, Male Pins
- IEC Conformance :
- No
- Filter Feature :
- No
- MIL Conformance :
- No
- Mixed Contacts :
- No
- Insulation Height :
- 0.059 1.50mm
- Terminal Pitch :
- 2mm
- Housing Color :
- Black
- Insulation Material :
- Polyamide (PA6T), Nylon 6T
- Material Flammability Rating :
- UL94 V-0
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Termination :
- Solder
- Contact Finish - Mating :
- Gold
- Style :
- Board to Board or Cable
- Height :
- 1.5mm
- Current Rating (Amps) :
- 1A
- Contact Length - Post :
- 0.118 3.00mm
- RoHS Status :
- ROHS3 Compliant
- Contact Finish Thickness - Mating :
- Flash
- Fastening Type :
- Push-Pull
- Lead Free :
- Lead Free
- Published :
- 2007
- Number of Positions Loaded :
- All
- Operating Temperature :
- -40°C~105°C
- Contact Type :
- Male Pin
- Housing Material :
- Nylon
- Mounting Type :
- Through Hole, Right Angle
- UL Flammability Code :
- 94V-0
- Shrouding :
- Unshrouded
- DIN Conformance :
- No
- Pitch - Mating :
- 0.079 2.00mm
- Contact Shape :
- Square
- Contact Length - Mating :
- 0.150 3.81mm
- Number of Positions :
- 11
- Series :
- 2763
- Packaging :
- Bulk
- Number of Rows :
- 1
- Connector Type :
- Header
- Contact Material :
- COPPER ALLOY
- Mount :
- Through Hole
- Option :
- GENERAL PURPOSE
- Datasheets
- 27631102RP2
2763 Series 1-Row Header Solder Copper Alloy Bulk Through Hole, Right Angle Gold Polyamide (PA6T), Nylon 6T 11-Position Board to Board or Cable 0.059 1.50mm Height
27631102RP2 Overview
The product is packaged in Header.This device is mounted in the Through Hole, Right Angle position.It has been determined that a Bulk case is necessary to package the product.There is a product in the 2763 Series.Part Through Hole is mounted to the part.As a result, the device runs at -40°C~105°C Operating Temperature.
27631102RP2 Features
2763 series
27631102RP2 Applications
There are a lot of NorComp Inc.
27631102RP2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
