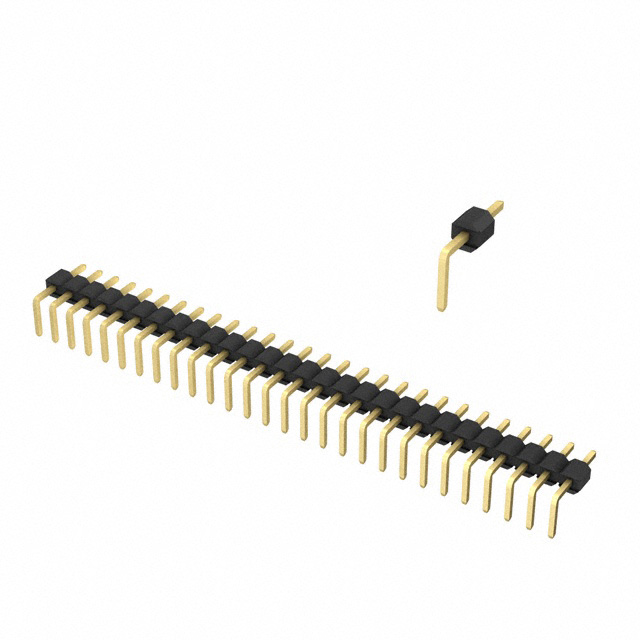

27632802RP2
Or copy the link below:
- Mfr.Part #
- 27632802RP2
- Manufacturer
- NorComp
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 28POS 2MM
- Stock
- 12,365
- In Stock ：
- 12,365
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- NorComp
- Product Category :
- Headers, Male Pins
- Termination :
- Solder
- Insulation Height :
- 0.059 1.50mm
- Number of Positions Loaded :
- All
- Current Rating (Amps) :
- 1A
- Contact Length - Mating :
- 0.150 3.81mm
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Operating Temperature :
- -40°C~105°C
- Housing Color :
- Black
- Shrouding :
- Unshrouded
- Number of Rows :
- 1
- Height :
- 1.5mm
- Series :
- 2763
- Lead Free :
- Lead Free
- Contact Finish - Mating :
- Gold
- IEC Conformance :
- No
- Terminal Pitch :
- 2mm
- MIL Conformance :
- No
- Housing Material :
- Nylon
- Contact Type :
- Male Pin
- Material Flammability Rating :
- UL94 V-0
- Style :
- Board to Board or Cable
- Published :
- 2007
- UL Flammability Code :
- 94V-0
- RoHS Status :
- ROHS3 Compliant
- Connector Type :
- Header
- Mount :
- Through Hole
- Contact Length - Post :
- 0.118 3.00mm
- Mounting Type :
- Through Hole, Right Angle
- Contact Material :
- COPPER ALLOY
- DIN Conformance :
- No
- Contact Shape :
- Square
- Packaging :
- Bulk
- Option :
- GENERAL PURPOSE
- Pitch - Mating :
- 0.079 2.00mm
- Filter Feature :
- No
- Mixed Contacts :
- No
- Fastening Type :
- Push-Pull
- Number of Positions :
- 28
- Insulation Material :
- Polyamide (PA6T), Nylon 6T
- Contact Finish Thickness - Mating :
- Flash
- Datasheets
- 27632802RP2
2763 Series 1-Row Header Solder Copper Alloy Bulk Through Hole, Right Angle Gold Polyamide (PA6T), Nylon 6T 28-Position Board to Board or Cable 0.059 1.50mm Height
27632802RP2 Overview
The product is packaged in Header.This device is mounted in the Through Hole, Right Angle position.It has been determined that a Bulk case is necessary to package the product.There is a product in the 2763 Series.Part Through Hole is mounted to the part.As a result, the device runs at -40°C~105°C Operating Temperature.
27632802RP2 Features
2763 series
27632802RP2 Applications
There are a lot of NorComp Inc.
27632802RP2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
