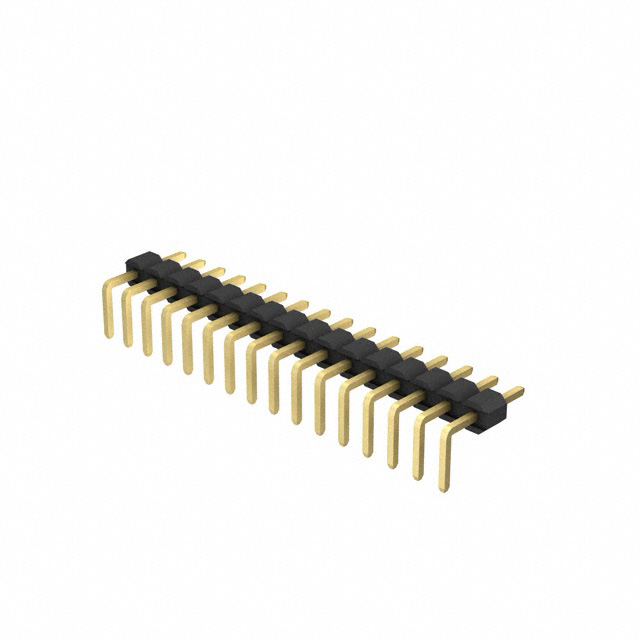

27631602RP2
Or copy the link below:
- Mfr.Part #
- 27631602RP2
- Manufacturer
- NorComp
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 16POS 2MM
- Stock
- 32,684
- In Stock ：
- 32,684
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- NorComp
- Product Category :
- Headers, Male Pins
- Current Rating (Amps) :
- 1A
- Insulation Height :
- 0.059 1.50mm
- UL Flammability Code :
- 94V-0
- Number of Positions :
- 16
- Number of Rows :
- 1
- IEC Conformance :
- No
- Published :
- 2007
- Lead Free :
- Lead Free
- DIN Conformance :
- No
- Insulation Material :
- Polyamide (PA6T), Nylon 6T
- Contact Gender :
- Male
- RoHS Status :
- ROHS3 Compliant
- Height :
- 1.5mm
- Style :
- Board to Board or Cable
- Connector Type :
- Header
- Operating Temperature :
- -40°C~105°C
- Shrouding :
- Unshrouded
- Contact Finish Thickness - Mating :
- Flash
- Number of Positions Loaded :
- All
- Contact Type :
- Male Pin
- Packaging :
- Bulk
- Housing Color :
- Black
- Option :
- GENERAL PURPOSE
- Termination :
- Solder
- Mixed Contacts :
- No
- Contact Finish - Mating :
- Gold
- Housing Material :
- Nylon
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Pitch - Mating :
- 0.079 2.00mm
- Terminal Pitch :
- 2mm
- Mounting Type :
- Through Hole, Right Angle
- Series :
- 2763
- Contact Length - Post :
- 0.118 3.00mm
- Contact Shape :
- Square
- Material Flammability Rating :
- UL94 V-0
- Mount :
- Through Hole
- MIL Conformance :
- No
- Filter Feature :
- No
- Contact Length - Mating :
- 0.150 3.81mm
- Fastening Type :
- Push-Pull
- Contact Material :
- COPPER ALLOY
- Datasheets
- 27631602RP2
27631602RP2 Documents
2763 Series 1-Row Header Solder Copper Alloy Bulk Through Hole, Right Angle Gold Polyamide (PA6T), Nylon 6T 16-Position Board to Board or Cable 0.059 1.50mm Height
27631602RP2 Overview
The packaging contains Header.There is a Through Hole, Right Angle mounting type for the device.This product is packaged in a case marked Bulk.Product number 2763 belongs to the 2763 Series.There is a Through Hole mount on the part.This device operates at a temperature of -40°C~105°C.
27631602RP2 Features
2763 series
27631602RP2 Applications
There are a lot of NorComp Inc.
27631602RP2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
