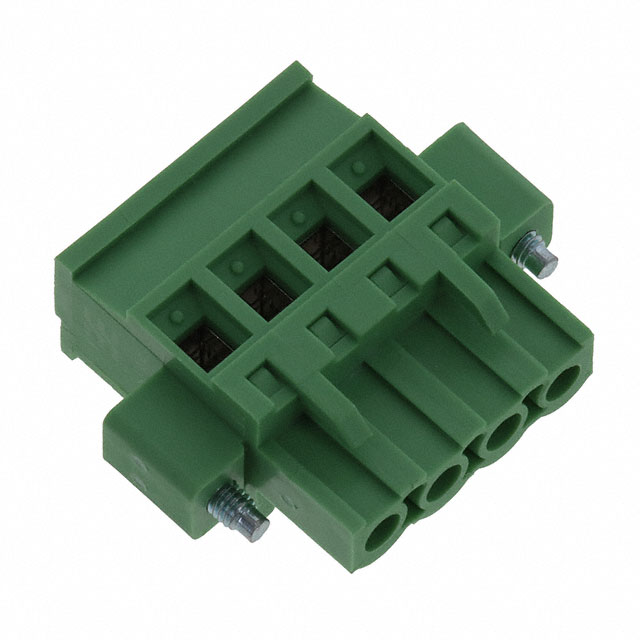

2647730000
Or copy the link below:
- Mfr.Part #
- 2647730000
- Manufacturer
- Weidmuller
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK PLUG 4POS 90DEG 5.08MM
- Stock
- 71
- In Stock ：
- 71
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Weidmuller
- Product Category :
- Headers, Plugs and Sockets
- Wire Gauge or Range - mm² :
- 0.2-4mm2
- Wire Gauge or Range - AWG :
- 12-26 AWG
- Wire Strip Length :
- 7mm
- Plug Wire Entry :
- 90°
- Screw Size :
- M3
- Contact Mating Finish :
- Tin
- Material Flammability Rating :
- UL94 V-0
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Color :
- Green
- Current - IEC :
- 15A
- Pitch :
- 0.200 5.08mm
- Voltage - IEC :
- 630V
- Torque - Screw :
- 0.5-0.55 Nm (4.4-4.8 Lb-In)
- Voltage - UL :
- 300V
- Number of Positions :
- 4
- Operating Temperature :
- -40°C~105°C
- Termination Style :
- Screw - Clamping Yoke (Tension Sleeve)
- Mounting Type :
- Free Hanging (In-Line)
- Type :
- Plug, Female Sockets
- Insulation Height :
- 1.020 25.91mm
- Series :
- Omnimate CPS
- Contact Material :
- COPPER ALLOY
- Packaging :
- Bulk
- Factory Lead Time :
- 10 Weeks
- Feature :
- Mating Flange, Retention Latches (Wire Side)
- Housing Material :
- Polyamide (PA), Nylon
- Number of Levels :
- 1
- Datasheets
- 2647730000
Bulk 0.200 5.08mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets Omnimate CPS Polyamide (PA), Nylon Tin Copper Alloy
2647730000 Overview
Its mounting type is Free Hanging (In-Line).Packaging is performed using a Bulk case.It is part of the Omnimate CPS Series of products.A number of features make it more powerful because of its Mating Flange, Retention Latches (Wire Side) feature.There is no operating temperature for the device.Several of the benefits of this part are also shared by other Plug, Female Sockets products.
2647730000 Features
Omnimate CPS series
2647730000 Applications
There are a lot of Weidmüller
2647730000 Terminal Blocks applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
