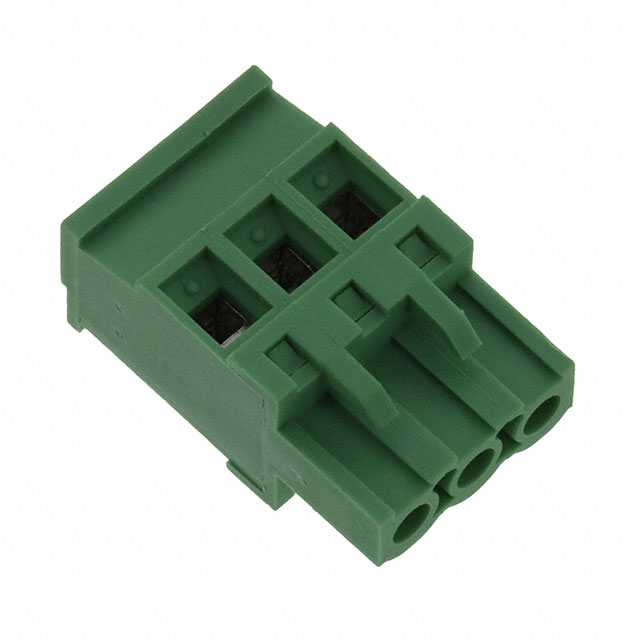

2647030000
Or copy the link below:
- Mfr.Part #
- 2647030000
- Manufacturer
- Weidmuller
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK PLUG 3POS 90DEG 5.08MM
- Stock
- 91
- In Stock ：
- 91
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Weidmuller
- Product Category :
- Headers, Plugs and Sockets
- Material Flammability Rating :
- UL94 V-0
- Contact Material :
- COPPER ALLOY
- Operating Temperature :
- -40°C~105°C
- Packaging :
- Bulk
- Wire Gauge or Range - AWG :
- 12-26 AWG
- Color :
- Green
- Termination Style :
- Screw - Clamping Yoke (Tension Sleeve)
- Mounting Type :
- Free Hanging (In-Line)
- Torque - Screw :
- 0.5-0.55 Nm (4.4-4.8 Lb-In)
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Number of Positions :
- 3
- Voltage - IEC :
- 630V
- Contact Mating Finish :
- Tin
- Wire Gauge or Range - mm² :
- 0.2-4mm2
- Insulation Height :
- 1.020 25.91mm
- Housing Material :
- Polyamide (PA), Nylon
- Screw Size :
- M3
- Number of Levels :
- 1
- Type :
- Plug, Female Sockets
- Plug Wire Entry :
- 90°
- Factory Lead Time :
- 10 Weeks
- Voltage - UL :
- 300V
- Current - IEC :
- 15A
- Feature :
- Retention Latches (Wire Side)
- Series :
- Omnimate CPS
- Pitch :
- 0.200 5.08mm
- Wire Strip Length :
- 7mm
- Datasheets
- 2647030000
Bulk 0.200 5.08mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets Omnimate CPS Polyamide (PA), Nylon Tin Copper Alloy
2647030000 Overview
A Free Hanging (In-Line) mounting type is specified for the device.A Bulk case is used for packaging.The product belongs to the Omnimate CPS Series.A number of aspects of its Retention Latches (Wire Side) feature make it more powerful.In this case, the device runs at -40°C~105°C Operating Temperature.It shares many benefts with other Plug, Female Sockets products.
2647030000 Features
Omnimate CPS series
2647030000 Applications
There are a lot of Weidmüller
2647030000 Terminal Blocks applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
