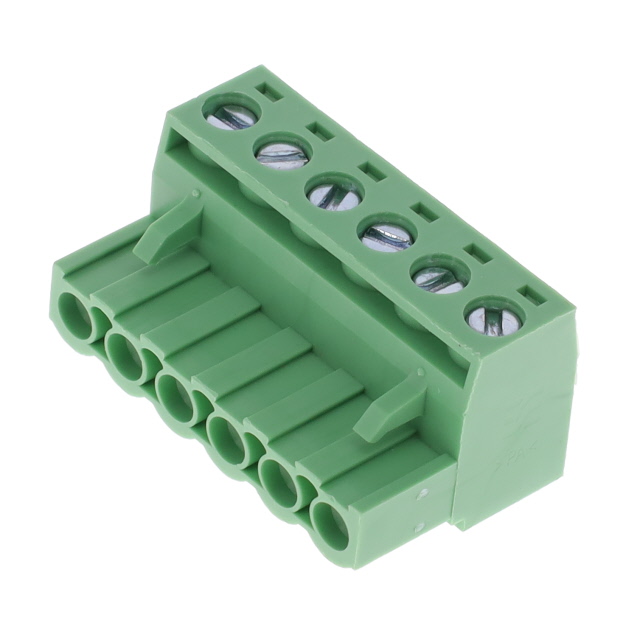

2647290000
Or copy the link below:
- Mfr.Part #
- 2647290000
- Manufacturer
- Weidmuller
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK PLUG 6POS 180DEG 5.08MM
- Stock
- 103
- In Stock ：
- 103
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Weidmuller
- Product Category :
- Headers, Plugs and Sockets
- Material Flammability Rating :
- UL94 V-0
- Type :
- Plug, Female Sockets
- Wire Gauge or Range - mm² :
- 0.2-4mm2
- Wire Gauge or Range - AWG :
- 12-30 AWG
- Voltage - UL :
- 300V
- Packaging :
- Bulk
- Mounting Type :
- Free Hanging (In-Line)
- Current - IEC :
- 15A
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Pitch :
- 0.200 5.08mm
- Feature :
- Retention Latches (Non-Wire Side)
- Insulation Height :
- 0.591 15.00mm
- Contact Mating Finish :
- Tin
- Voltage - IEC :
- 630V
- Torque - Screw :
- 0.5-0.55 Nm (4.4-4.8 Lb-In)
- Housing Material :
- Polyamide (PA), Nylon
- Wire Strip Length :
- 7mm
- Series :
- Omnimate CPS
- Operating Temperature :
- -40°C~105°C
- Factory Lead Time :
- 10 Weeks
- Number of Positions :
- 6
- Plug Wire Entry :
- 180°
- Color :
- Green
- Number of Levels :
- 1
- Contact Material :
- COPPER ALLOY
- Termination Style :
- Screw - Clamping Yoke (Tension Sleeve)
- Screw Size :
- M3
- Datasheets
- 2647290000
2647290000 Documents
Bulk 0.200 5.08mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets Omnimate CPS Polyamide (PA), Nylon Tin Copper Alloy
2647290000 Overview
This device is mounted in the Free Hanging (In-Line) position.It has been determined that a Bulk case is necessary to package the product.There is a product in the Omnimate CPS Series.There are a number of advantages to its Retention Latches (Non-Wire Side) feature.As a result, the device runs at -40°C~105°C Operating Temperature.With this part, you get a lot of benefits that you won't find in other Plug, Female Sockets products.
2647290000 Features
Omnimate CPS series
2647290000 Applications
There are a lot of Weidmüller
2647290000 Terminal Blocks applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
