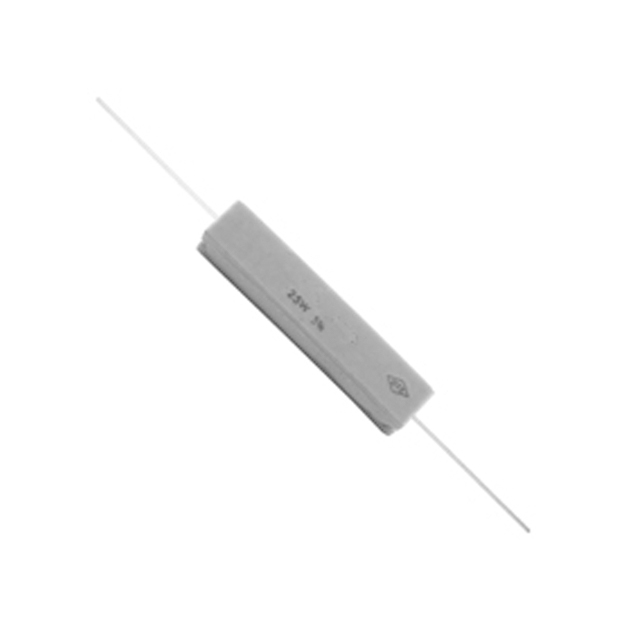

25W2D2

Manufacturer :

NTE Electronics, Inc.

Product Category :

Through Hole Resistors

Product Depth (mm) :

12.5(mm)

Composition :

Wirewound

Features :

-

Package Height :

12.5 mm

Tolerance :

±5%

Construction :

RECTANGULAR

Product Height (mm) :

12.5(mm)

Power Rating(s) :

25(W)

Temperature Coefficient :

±300ppm/°C

Operating Temp Range :

-55C to 155C

Package Width :

12.5 mm

Military Standard :

Not Required

Package Length :

63.5 mm

Product Status :

Active

ECCN Code :

EAR99

Size Code :

49

Number of Terminals :

2

Operating Temperature :

-55°C ~ 155°C

Terminal Type :

Axial Leads

Lead Diameter :

0.04

Product Length (mm) :

63.5(mm)

HTS Code :

8533.21.00.80

Rated Power Dissipation (P) :

25 W

Working Voltage :

800 V

Type :

Wirewound

Subcategory :

Fixed Resistors

Termination Style :

Axial

Number of Terminations :

2

Resistance :

2.2 Ohms

Lead Length :

1.5

Tolerance (+ or -) :

5%

Height - Seated (Max) :

-

Series :

-

Resistor Type :

FIXED RESISTOR

Flame-Proof Support :

No

Wattage :

25

Failure Rate :

-

Power (Watts) :

25W

Size / Dimension :

0.492" Square x 2.50" L (12.50mm x 63.50mm)

Technology :

Wire Wound

Product Diameter (mm) :

Not Required(mm)

Reach Compliance Code :

Unknown

Package / Case :

Axial

Supplier Device Package :

Axial

Case Style :

Molded

Manufacturer :

NTE Electronics

Lead Spacing (nom) :

Not Required(mm)

Package :

Bag

Package Type :

Axial Lead
