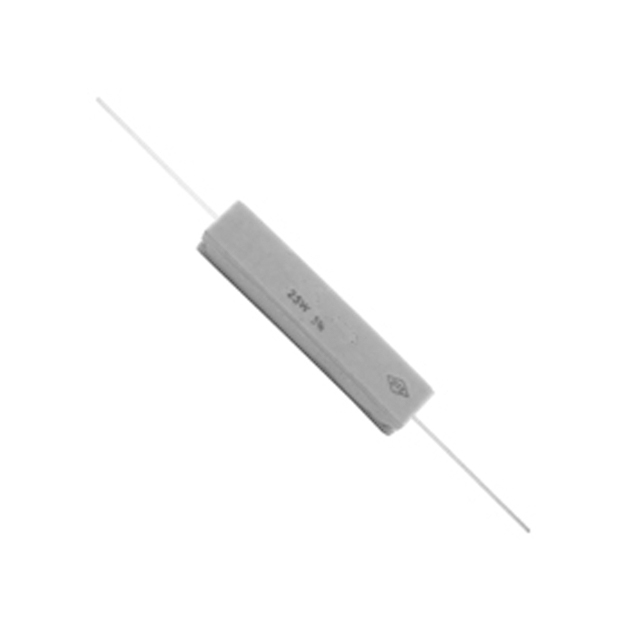

25W239

Manufacturer :

NTE Electronics, Inc.

Product Category :

Through Hole Resistors

Technology :

Wire Wound

Power Rating(s) :

25(W)

Resistor Type :

FIXED RESISTOR

Supplier Device Package :

Axial

Power Rating :

25 W

Features :

-

Product Diameter (mm) :

Not Required(mm)

Composition :

Wirewound

Package Type :

Axial Lead

Package Width :

12.5 mm

Lead Diameter :

0.04

Subcategory :

Fixed Resistors

Termination :

Axial

Size Code :

49

Number of Terminals :

2

Series :

-

HTS Code :

8533.21.00.80

Operating Temperature :

-55°C ~ 155°C

Power (Watts) :

25W

Resistance :

3.9 kOhms

Working Voltage :

800 V

Tolerance (+ or -) :

5%

Product Depth (mm) :

12.5(mm)

Case Style :

Molded

Max Operating Temperature :

155 °C

Termination Style :

Axial

Reach Compliance Code :

Unknown

Package :

Bag

Mount :

Through Hole

Product Height (mm) :

12.5(mm)

Height - Seated (Max) :

-

Operating Temp Range :

-55C to 155C

Military Standard :

Not Required

Tolerance :

±5%

RoHS :

Non-Compliant

Temperature Coefficient :

±300ppm/°C

Size / Dimension :

0.492" Square x 2.50" L (12.50mm x 63.50mm)

Package Height :

12.5 mm

Manufacturer :

NTE Electronics

Rated Power Dissipation (P) :

25 W

Lead Length :

1.5

Wattage :

25

Type :

Wirewound

Package Length :

63.5 mm

Lead Spacing (nom) :

Not Required(mm)

ECCN Code :

EAR99

Product Length (mm) :

63.5(mm)

Package / Case :

Axial

Construction :

RECTANGULAR

Flame-Proof Support :

No

Product Status :

Active

Number of Terminations :

2

Min Operating Temperature :

-55 °C

Failure Rate :

-

Terminal Type :

Axial Leads
