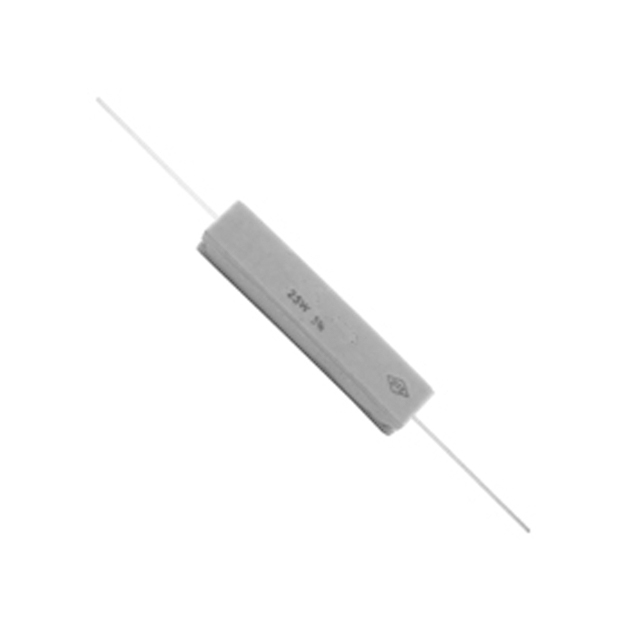

25W156

Manufacturer :

NTE Electronics, Inc.

Product Category :

Through Hole Resistors

Tolerance :

±5%

Size / Dimension :

0.492" Square x 2.50" L (12.50mm x 63.50mm)

RoHS :

Non-Compliant

Package Width :

12.5 mm

Min Operating Temperature :

-55 °C

Resistance :

560 Ohms

Length :

63.5 mm

Construction :

Power

Weight :

90.718474 mg

Package :

Bag

Product Status :

Active

Number of Terminations :

2

Operating Temperature :

-55°C ~ 155°C

Rated Power Dissipation (P) :

25 W

Reach Compliance Code :

Unknown

Lead Length :

1.5

ECCN Code :

EAR99

Temperature Coefficient :

±300ppm/°C

Height :

12.7 mm

Resistor Type :

FIXED RESISTOR

Technology :

Wire Wound

Lead Diameter :

0.04

Failure Rate :

-

Package Height :

12.5 mm

Manufacturer :

NTE Electronics

Mount :

Through Hole

Width :

12.7 mm

Features :

-

Package / Case :

Axial

Termination :

Axial

Subcategory :

Fixed Resistors

Series :

-

Size Code :

49

Power Rating :

25 W

Max Operating Temperature :

155 °C

Package Type :

Axial Lead

Height - Seated (Max) :

-

Power (Watts) :

25W

Package Length :

63.5 mm

Working Voltage :

800 V

Wattage :

25

Number of Terminals :

2

Terminal Type :

Axial Leads

Composition :

Wirewound

HTS Code :

8533.21.00.80

Supplier Device Package :

Axial
