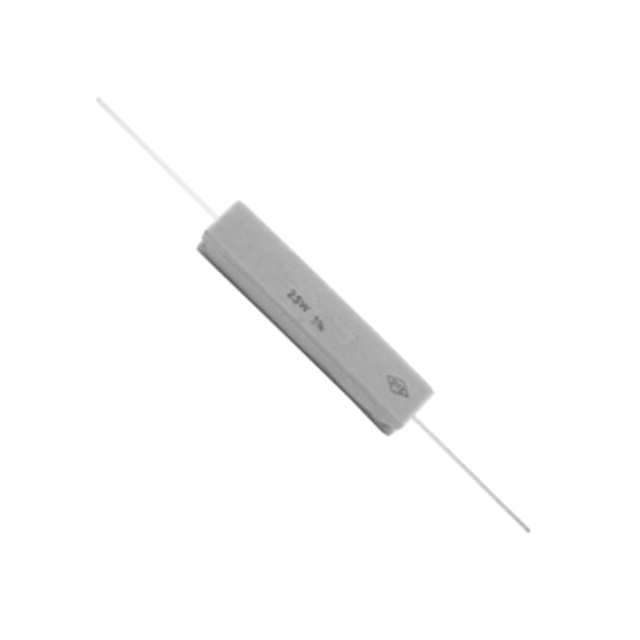

25W122

Manufacturer :

NTE Electronics, Inc.

Product Category :

Through Hole Resistors

Product Status :

Active

Max Operating Temperature :

155 °C

Number of Terminals :

2

Lead Length :

1.5

Package Length :

63.5 mm

Package Type :

Axial Lead

Package / Case :

Axial

Height :

12.7 mm

Rated Power Dissipation (P) :

25 W

Power (Watts) :

25W

Length :

76.2 mm

Min Operating Temperature :

-55 °C

Power Rating :

25 W

Height - Seated (Max) :

-

Reach Compliance Code :

Unknown

Package Height :

12.5 mm

Temperature Coefficient :

±300ppm/°C

Wattage :

25

Voltage Rating (DC) :

800 V

Width :

12.7 mm

Composition :

Wirewound

Number of Terminations :

2

Terminal Type :

Axial Leads

Manufacturer :

NTE Electronics

Supplier Device Package :

Axial

Package :

Bag

Weight :

40.823313 g

Lead Diameter :

0.04

Resistor Type :

FIXED RESISTOR

Working Voltage :

800 V

Resistance :

220 Ohms

Features :

-

Series :

-

Failure Rate :

-

Construction :

Power

Subcategory :

Fixed Resistors

Mount :

Through Hole

Size Code :

49

Tolerance :

±5%

RoHS :

Compliant

Termination :

Axial

Operating Temperature :

-55°C ~ 155°C

Technology :

Wire Wound

Package Width :

12.5 mm

Size / Dimension :

0.492" Square x 2.50" L (12.50mm x 63.50mm)
