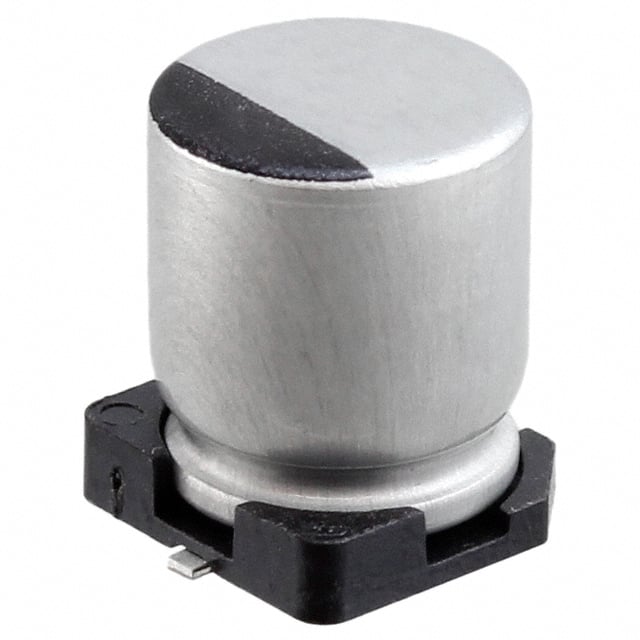

25THV47M6.3X8

Manufacturer :

Rubycon

Product Category :

Aluminum Electrolytic Capacitors

Mounting Type :

Surface Mount

ECCN Code :

EAR99

Length :

7.2mm

Lifetime @ Temp :

2000 Hrs @ 125°C

Operating Temperature :

-40°C~125°C

Number of Terminations :

2

Surface Mount Land Size :

0.260Lx0.260W 6.60mmx6.60mm

Width :

6.6mm

Packaging :

Tape and Reel (TR)

Applications :

Automotive

Terminal Shape :

Flat

Package / Case :

Radial, Can - SMD

Series :

THV

Leakage Current :

0.01175mA

Ripple Current :

100mA

Life (Hours) :

2000 hours

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Size / Dimension :

0.248Dia 6.30mm

Ripple Current @ Low Frequency :

100mA @ 120Hz

Ripple Current @ High Frequency :

200mA @ 100kHz

Mount :

Surface Mount

Rated (DC) Voltage (URdc) :

25V

RoHS Status :

ROHS3 Compliant

Factory Lead Time :

17 Weeks

Size Code :

2626

Capacitor Type :

ALUMINUM ELECTROLYTIC CAPACITOR

Voltage - Rated :

25V

Polarization :

Polar

Packing Method :

TR

Height Seated (Max) :

0.315 8.00mm

ESR (Equivalent Series Resistance) :

700mOhm @ 100kHz

Ratings :

AEC-Q200

Tolerance :

±20%

Tan Delta :

0.18

Capacitance :

47μF

Dielectric Material :

ALUMINUM (WET)
