2198266-2
Or copy the link below:
- Mfr.Part #
- 2198266-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT DUAL BEAM 96P EDGE MNT
- Stock
- 2
- In Stock ：
- 2
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Series :
- Strada Whisper
- Circuit Application :
- Signal
- Make First / Break Last :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Current Rating :
- 500mA
- Number of Columns :
- 8
- Preloaded :
- No
- Connector Usage :
- Backplane
- Length - Tail :
- 1.4986mm
- Flammability Rating :
- UL94 V-0
- Durability Rating :
- 200 Cycles
- Number of Signal Positions :
- 96
- Contact Plating :
- Tin
- Operating Temperature :
- -55°C~85°C
- RoHS Status :
- RoHS Compliant
- Current Rating (Amps) :
- 0.5A
- Operating Supply Voltage :
- 80V
- Contact Layout, Typical :
- 48 Differential Pairs
- Termination :
- Press-Fit
- Pitch :
- 0.177 4.50mm
- Differential Signaling :
- yes
- Min Operating Temperature :
- -67°C
- Width :
- 28mm
- Differential Pairs per Column :
- 6
- Sealable :
- No
- Number of Positions Loaded :
- All
- Material Flammability Rating :
- UL94 V-0
- Impedance :
- 100Ohm
- Height :
- 35.814mm
- Stack Height :
- 1.4986mm
- Published :
- 2012
- Contact Style :
- Press-Fit
- Number of Positions :
- 96
- Connector Style :
- Dual Beam, Center
- REACH SVHC :
- Unknown
- Color :
- Black
- Packaging :
- Tube
- Shrouding :
- Unshrouded
- PCB Thickness :
- 1mm
- Housing Color :
- Black
- Max Current Rating :
- 500mA
- Length :
- 35.9mm
- Factory Lead Time :
- 13 Weeks
- Number of Ground Positions :
- 56
- Data Rate :
- 56 Gbps
- Hole Diameter :
- 344 μm
- Housing Material :
- Thermoplastic
- Max Operating Temperature :
- 185°C
- Mount :
- Through Hole
- Mating Alignment :
- With
- Number of Power Positions :
- 96
- Contact Current Rating :
- 500mA
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- ELV :
- Compliant
- Orientation :
- RIGHT ANGLE
- Approval Agency :
- UL
- Voltage - Rated :
- 250V
- Number of Rows :
- 6
- Gender :
- Receptacle
- Lead Free :
- Lead Free
- PCB Mounting Orientation :
- RIGHT ANGLE
- Lifecycle Status :
- ACTIVE (Last Updated: 4 months ago)
- Number of Contacts :
- 144
- Stackable :
- No
- Row Spacing :
- 2.4892 mm
- Connector Type :
- Receptacle, Female Sockets and Blade Sockets
- Number of Pins :
- 144
- Number of Pairs :
- 48
- Datasheets
- 2198266-2

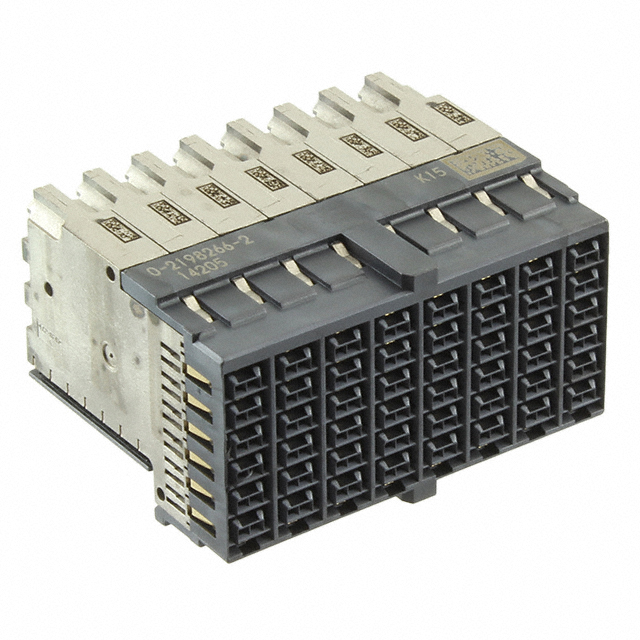

STRADA Whisper Series Receptacle, Female Sockets and Blade Sockets Press-Fit Black 96 Positions Pitch: 0.177 4.50mm -55°C~85°C Tube Board Edge, Through Hole, Right Angle
2198266-2 Overview
A Receptacle, Female Sockets and Blade Sockets package is included with it.Its mounting type is Board Edge, Through Hole, Right Angle.Packaging is performed using a Tube case.It is part of the STRADA Whisper Series of products.144 pins are provided on the device.Whenever it's below 185°C, it's best to use it.The device must operate at a temperature of -67°C at all times.Through Hole mounts the part.There is no operating temperature for the device.This Backplane Connector operates with a supply voltage of 80V.
