2198174-1
Or copy the link below:
- Mfr.Part #
- 2198174-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT DUAL BEAM 144P EDGE MT
- Stock
- 77
- In Stock ：
- 77
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Pitch :
- 0.098 2.50mm
- Differential Pairs per Column :
- 8
- Material Flammability Rating :
- UL94 V-0
- Housing Material :
- Polymer
- Housing Color :
- Black
- Current Rating :
- 400mA
- Operating Supply Voltage :
- 80V
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Circuit Application :
- Signal
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Current Rating (Amps) :
- 0.5A
- Durability Rating :
- 200 Cycles
- Length :
- 34.05mm
- Mating Alignment :
- With
- Contact Style :
- Press-Fit
- Number of Columns :
- 12
- Impedance :
- 100Ohm
- Termination :
- Press-Fit
- Number of Contacts :
- 144
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Number of Pins :
- 144
- Connector Style :
- Dual Beam, Center
- Number of Positions Loaded :
- All
- Approval Agency :
- UL
- Contact Finish :
- Palladium-Nickel
- Flammability Rating :
- UL94 V-0
- Number of Pairs :
- 72
- Row Spacing :
- 3.9 mm
- PCB Mounting Orientation :
- RIGHT ANGLE
- Number of Rows :
- 6
- Packaging :
- Tube
- Connector Usage :
- Backplane, Orthogonal
- Factory Lead Time :
- 13 Weeks
- REACH SVHC :
- Unknown
- Max Operating Temperature :
- 221°C
- Number of Positions :
- 144
- Number of Ground Positions :
- 84
- PCB Thickness :
- 990.6μm
- Contact Plating :
- Tin
- Stackable :
- No
- Published :
- 2015
- Data Rate :
- 56 Gbps
- Connector Type :
- Receptacle, Female Sockets and Blade Sockets
- Number of Signal Positions :
- 144
- Hole Diameter :
- 1 mm
- Preloaded :
- No
- Make First / Break Last :
- No
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- Sealable :
- No
- RoHS Status :
- Non-RoHS Compliant
- Series :
- Strada Whisper
- Height :
- 26.4922mm
- Shrouding :
- Unshrouded
- Min Operating Temperature :
- -67°C
- Differential Signaling :
- yes
- Contact Current Rating :
- 400mA
- Orientation :
- RIGHT ANGLE
- Gender :
- Receptacle
- Max Current Rating :
- 400mA
- Datasheets
- 2198174-1

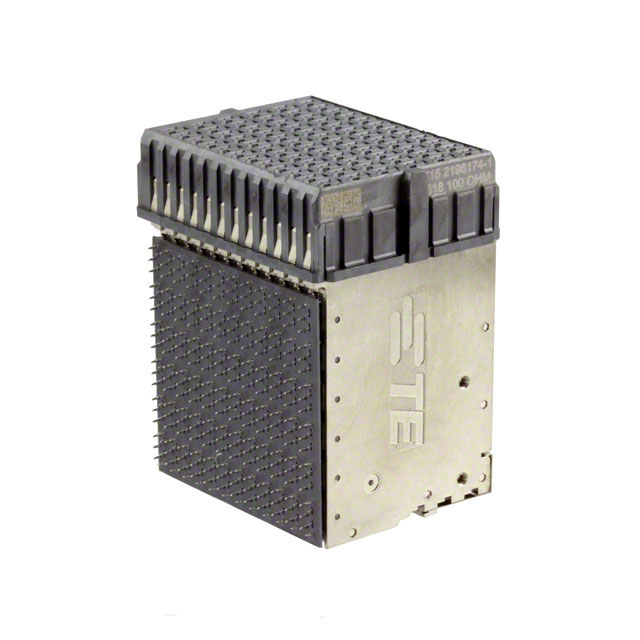

STRADA Whisper Series Receptacle, Female Sockets and Blade Sockets Press-Fit Palladium-Nickel 30.0μin 0.76μm 144 Positions Pitch: 0.098 2.50mm Tube Board Edge, Through Hole, Right Angle
2198174-1 Overview
The product comes in a package of Receptacle, Female Sockets and Blade Sockets.Board Edge, Through Hole, Right Angle is the type of mounting for the device.To package the product, a Tube case is used.The product is a member of the STRADA Whisper Series.144 pins are present on the device.Use it when the temperature is below 221°C.Temperatures below -67°C are required for this device to operate.As long as the supply voltage is 80V, this Backplane Connector is functional.
2198174-1 Features
STRADA Whisper series
2198174-1 Applications
There are a lot of TE Connectivity AMP Connectors
2198174-1 Backplane Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
