2198265-2
Or copy the link below:
- Mfr.Part #
- 2198265-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT DUAL BEAM 72P EDGE MNT
- Stock
- 36
- In Stock ：
- 36
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Number of Positions :
- 72
- Impedance :
- 100Ohm
- Housing Material :
- Thermoplastic
- Mating Alignment :
- With
- Packaging :
- Tube
- Operating Temperature :
- -55°C~85°C
- Stackable :
- No
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- Connector Style :
- Dual Beam, Center
- RoHS Status :
- RoHS Compliant
- Number of Columns :
- 6
- Approval Agency :
- UL
- Max Operating Temperature :
- 185°C
- Number of Contacts :
- 108
- Pitch :
- 0.177 4.50mm
- PCB Mounting Orientation :
- RIGHT ANGLE
- Contact Plating :
- Tin
- Color :
- Black
- Hole Diameter :
- 344 μm
- Make First / Break Last :
- No
- Shrouding :
- Unshrouded
- Row Spacing :
- 2.4892 mm
- Stack Height :
- 1.4986mm
- Current Rating (Amps) :
- 0.5A
- Orientation :
- RIGHT ANGLE
- Height :
- 26.67mm
- Published :
- 2012
- Number of Power Positions :
- 72
- Gender :
- Receptacle
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Min Operating Temperature :
- -67°C
- Number of Pins :
- 108
- PCB Thickness :
- 1mm
- Contact Style :
- Press-Fit
- Preloaded :
- No
- Factory Lead Time :
- 15 Weeks
- Number of Positions Loaded :
- All
- REACH SVHC :
- Unknown
- Flammability Rating :
- UL94 V-0
- ELV :
- Compliant
- Connector Type :
- Receptacle, Female Sockets and Male Pins
- Contact Current Rating :
- 500mA
- Differential Pairs per Column :
- 4
- Housing Color :
- Black
- Data Rate :
- 56 Gbps
- Lifecycle Status :
- ACTIVE (Last Updated: 4 months ago)
- Durability Rating :
- 200 Cycles
- Length :
- 26.67mm
- Number of Rows :
- 6
- Connector Usage :
- Backplane
- Number of Signal Positions :
- 72
- Number of Pairs :
- 36
- Current Rating :
- 500mA
- Differential Signaling :
- yes
- Length - Tail :
- 1.4986mm
- Number of Ground Positions :
- 56
- Contact Layout, Typical :
- 36 Differential Pairs
- Voltage - Rated :
- 250V
- Material Flammability Rating :
- UL94 V-0
- Max Current Rating :
- 500mA
- Width :
- 28mm
- Termination :
- Press-Fit
- Operating Supply Voltage :
- 80V
- Circuit Application :
- Signal
- Sealable :
- No
- Series :
- Strada Whisper
- Datasheets
- 2198265-2

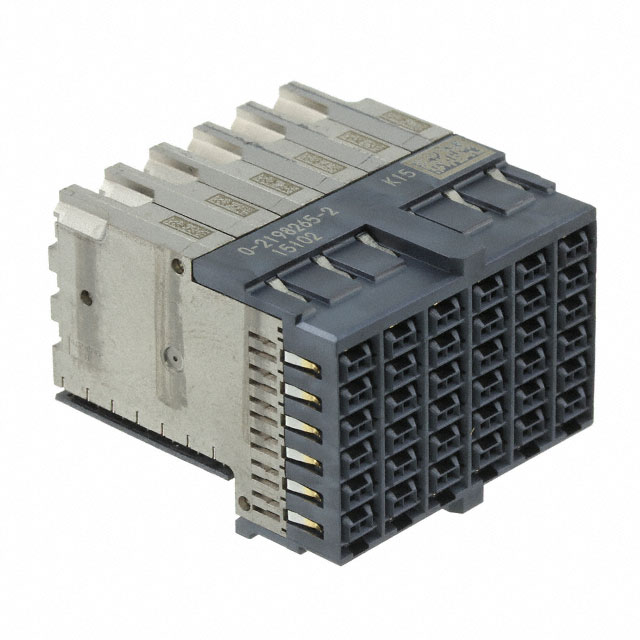

STRADA Whisper Series Receptacle, Female Sockets and Male Pins Press-Fit Black 72 Positions Pitch: 0.177 4.50mm -55°C~85°C Tube Board Edge, Through Hole, Right Angle
2198265-2 Overview
This product is packaged in a Receptacle, Female Sockets and Male Pins box.Board Edge, Through Hole, Right Angle indicates that the device is mounted.An Tube case is utilized for packaging the product.The product is a part of the STRADA Whisper Series.It is equipped with 108 pins.Use it below 185°C.A minimum temperature of -67°C must be maintained for the operation of this device.Operating temperature is set to -55°C~85°C.The Backplane Connector is capable of working with a supply voltage of 80V.
