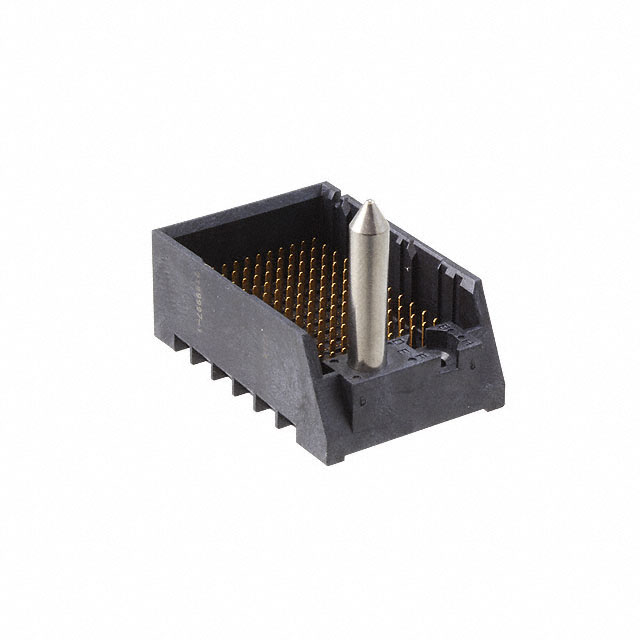

2149997-1
Or copy the link below:
- Mfr.Part #
- 2149997-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER IMPACT 144POS PCB
- Stock
- 94
- In Stock ：
- 94
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Mounting Type :
- Through Hole
- Differential Pairs per Column :
- 4
- Make First / Break Last :
- No
- Current Rating :
- 750mA
- Row Spacing :
- 1.35 mm
- ECCN Code :
- EAR99
- Length - Tail :
- 1.4mm
- Number of Positions Loaded :
- All
- Contact Finish :
- Gold
- Housing Material :
- Polymer
- Flammability Rating :
- UL94 V-0
- Data Rate :
- 25 Gbps
- Hole Diameter :
- 381 µm
- Operating Temperature :
- -55°C~ 85°C
- Contact Plating :
- Gold, Tin
- Series :
- Impact
- Color :
- Black
- Circuit Application :
- Signal
- Mating Alignment :
- With
- Packaging :
- Tube
- Contact Current Rating :
- 750mA
- Underplate Material :
- Nickel
- Factory Lead Time :
- 19 Weeks
- Shrouding :
- Fully Shrouded
- Pitch :
- 0.075 1.91mm
- Max Current Rating :
- 750mA
- Number of Positions :
- 144
- Height :
- 11.95mm
- Number of Signal Positions :
- 96
- PCB Thickness :
- 1mm
- Orientation :
- Vertical
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Impedance :
- 100Ohm
- Width :
- 20.8026mm
- Material Flammability Rating :
- UL94 V-0
- Connector Type :
- Header, Male Pins
- Published :
- 2012
- Connector Style :
- Impact, Guide Right
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Operating Supply Voltage :
- 30V
- Differential Signaling :
- yes
- RoHS Status :
- RoHS Compliant
- ELV :
- Compliant
- Number of Ground Positions :
- 48
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Length :
- 30.70098mm
- Number of Rows :
- 12
- Termination :
- Press-Fit
- Plating Thickness :
- 760 nm
- Datasheets
- 2149997-1
Impact Series Header, Male Pins Press-Fit Gold Black 30.0μin 0.76μm 144 Positions Pitch: 0.075 1.91mm -55°C~ 85°C Tube Through Hole
2149997-1 Overview
Packaging for this item is Header, Male Pins.There is a mounting type of Through Hole for this device.It is necessary to use a Tube case for packaging the product.This product is part of the Impact Series.In this case, the device operates at -55°C~ 85°C Operating Temperature.This Backplane Connector can be used with a supply voltage of 30V.
2149997-1 Features
Impact series
2149997-1 Applications
There are a lot of TE Connectivity AMP Connectors
2149997-1 Backplane Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
