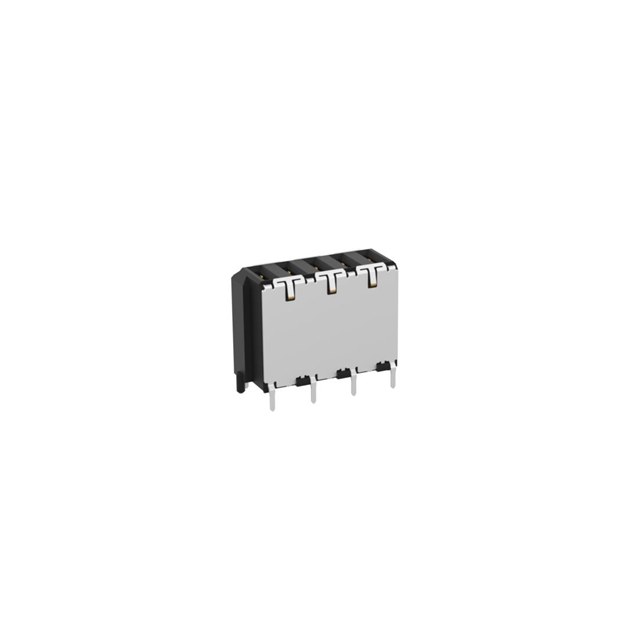

214914

Manufacturer :

TE Connectivity

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Body Breadth :

0.163 inch

Body Orientation :

Straight

Product Depth (mm) :

4.15(mm)

Manufacturer :

ERNI

Insulation Resistance :

10000000000 Ω

Number of Terminals :

5

ECCN Code :

EAR99

Additional Feature :

RoHS Compliant

Mounting Option 1 :

LOCKING

Option :

GENERAL PURPOSE

Number of Contacts :

5(POS)

IEC Conformance :

No

Current Rating (Max) :

6.6/CONTACT(A)

Operating Temperature Min Deg. C :

-55C

Mounting Style :

Through Hole

MIL Conformance :

No

Empty Shell :

No

Terminal Length :

0.047 inch

Packaging :

Tape and Reel

Reference Standard :

UL

Contact Plating :

Gold

Operating Temperature Max Deg. C :

125C

Subcategory :

Headers and Edge Type Connectors

Contact Finish Termination :

Tin (Sn)

Body/Shell Style :

PLUG

Pbfree Code :

yes

Connector Type :

RECTANGULAR POWER CONNECTOR

Durability :

500 Cycles

Total Number of Contacts :

5

Shell Material :

LIQUID CRYSTAL POLYMER

Pitch (mm) :

2(mm)

DIN Conformance :

No

Contact Resistance :

4 mΩ

Filter Feature :

No

Product Height (mm) :

9.4(mm)

Body Depth :

0.307 inch

Mounting Type :

BOARD

Reliability :

COMMERCIAL

HTS Code :

8536.69.40.30

Dielectric Withstanding Voltage :

1050VAC V

JESD-609 Code :

e3

Reach Compliance Code :

Compliant

Gender :

F

Termination Method :

Solder

Contact Arrangement :

S0P5

Operating Temp Range :

-55C to 125C

UL Flammability Code :

94V-0

Number of Ports :

1(Port)

Mixed Contacts :

No

Board Mounting Option :

PEG

Product Length (mm) :

11.55(mm)

Contact Material :

COPPER ALLOY

Termination Type :

Solder

Contact Gender :

FEMALE
