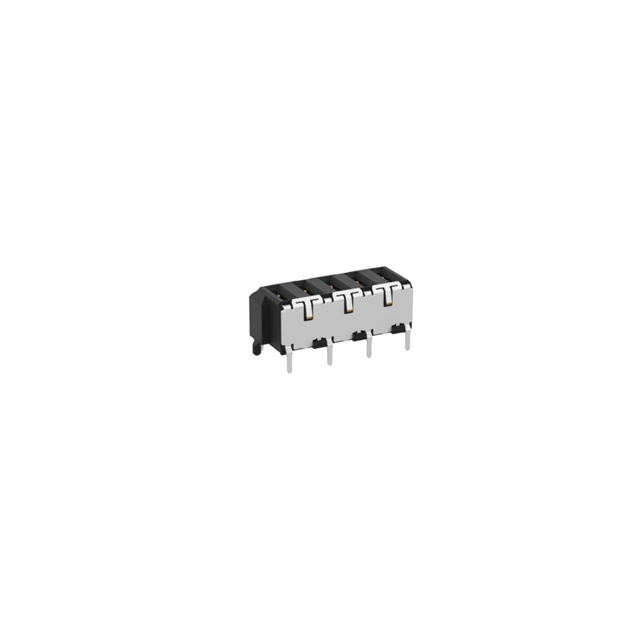

214912

Manufacturer :

TE Connectivity

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Reach Compliance Code :

Compliant

Contact Arrangement :

S0P5

Body Breadth :

0.163 inch

JESD-609 Code :

e3

Mounting Type :

BOARD

Pbfree Code :

yes

Mounting Style :

Surface Mount

Number of Contact Rows :

1

Body Depth :

0.15 inch

Termination Type :

Solder

Contact Material :

COPPER ALLOY

Pitch (mm) :

2(mm)

Reliability :

COMMERCIAL

Number of Contacts :

5(POS)

HTS Code :

8536.69.40.30

Body/Shell Style :

PLUG

Termination Method :

Solder

Contact Resistance :

4 mΩ

Contact Finish Termination :

Tin (Sn)

Total Number of Contacts :

5

Current Rating (Max) :

6.6/CONTACT(A)

Empty Shell :

No

Filter Feature :

No

ECCN Code :

EAR99

Operating Temp Range :

-55C to 125C

Mounting Option 1 :

LOCKING

Board Mounting Option :

PEG

Contact Plating :

Gold

Body Orientation :

Straight

Terminal Length :

0.047 inch

DIN Conformance :

No

Dielectric Withstanding Voltage :

1050VAC V

Insulation Resistance :

10000000000 Ω

Connector Type :

RECTANGULAR POWER CONNECTOR

Manufacturer :

ERNI

UL Flammability Code :

94V-0

Shell Material :

LIQUID CRYSTAL POLYMER

Product Depth (mm) :

5.5(mm)

Contact Gender :

FEMALE

Product Height (mm) :

5.4(mm)

Type :

Board to Board

Gender :

F

Packaging :

Tape and Reel

MIL Conformance :

No

Durability :

500 Cycles

Contact Resistance Max :

4(mohm)

Product Length (mm) :

11.55(mm)

IEC Conformance :

No

Additional Feature :

RoHS Compliant

Mixed Contacts :

No

Option :

GENERAL PURPOSE

Subcategory :

Headers and Edge Type Connectors

Reference Standard :

UL
