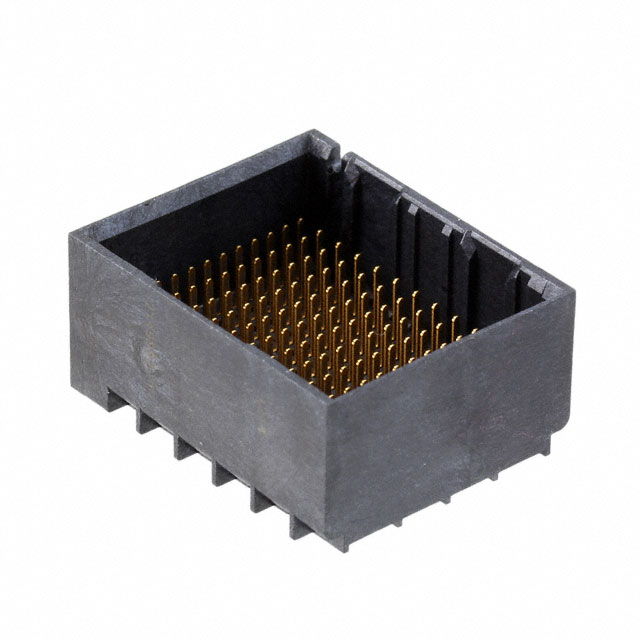

2149992-1
Or copy the link below:
- Mfr.Part #
- 2149992-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER IMPACT 144POS PCB
- Stock
- 15,116
- In Stock ：
- 15,116
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Current Rating :
- 750mA
- Mating Alignment :
- With
- Length :
- 25.5524mm
- Contact Style :
- Press-Fit
- Housing Color :
- Black
- Row Spacing :
- 1.35 mm
- Number of Ground Positions :
- 48
- Width :
- 20.8026mm
- Min Operating Temperature :
- -67°C
- RoHS Status :
- RoHS Compliant
- Sealable :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Max Current Rating :
- 750mA
- Pitch :
- 0.075 1.91mm
- Housing Material :
- Polymer
- Shrouding :
- Fully Shrouded
- Contact Finish :
- Gold
- PCB Mounting Orientation :
- Vertical
- Published :
- 2015
- Circuit Application :
- Signal
- Mounting Type :
- Through Hole
- Make First / Break Last :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Data Rate :
- 25 Gbps
- Underplate Material :
- Nickel
- Plating Thickness :
- 760 nm
- Contact Current Rating :
- 750mA
- Max Operating Temperature :
- 185°C
- Connector Type :
- Header, Male Pins
- Number of Positions :
- 144
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Orientation :
- Vertical
- Number of Columns :
- 12
- Color :
- Black
- Hole Diameter :
- 381 µm
- Height :
- 11.95mm
- Termination :
- Press-Fit
- Stackable :
- No
- Number of Contacts :
- 144
- Number of Pairs :
- 48
- Number of Rows :
- 12
- Differential Pairs per Column :
- 4
- Number of Positions Loaded :
- All
- Contact Plating :
- Gold, Tin
- Material Flammability Rating :
- UL94 V-0
- Differential Signaling :
- yes
- PCB Thickness :
- 1mm
- ELV :
- Compliant
- Connector Style :
- Impact
- Operating Temperature :
- -55°C~ 85°C
- Number of Signal Positions :
- 96
- Flammability Rating :
- UL94 V-0
- Impedance :
- 100Ohm
- Operating Supply Voltage :
- 30V
- Factory Lead Time :
- 14 Weeks
- Packaging :
- Tube
- Length - Tail :
- 1.4mm
- Series :
- Impact
- Datasheets
- 2149992-1
Impact Series Header, Male Pins Press-Fit Gold Black 30.0μin 0.76μm 144 Positions Pitch: 0.075 1.91mm -55°C~ 85°C Tube Through Hole
2149992-1 Overview
This product is packaged in a Header, Male Pins box.Through Hole indicates that the device is mounted.An Tube case is utilized for packaging the product.The product is a part of the Impact Series.Use it below 185°C.A minimum temperature of -67°C must be maintained for the operation of this device.Operating temperature is set to -55°C~ 85°C.The Backplane Connector is capable of working with a supply voltage of 30V.
2149992-1 Features
Impact series
2149992-1 Applications
There are a lot of TE Connectivity AMP Connectors
2149992-1 Backplane Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
