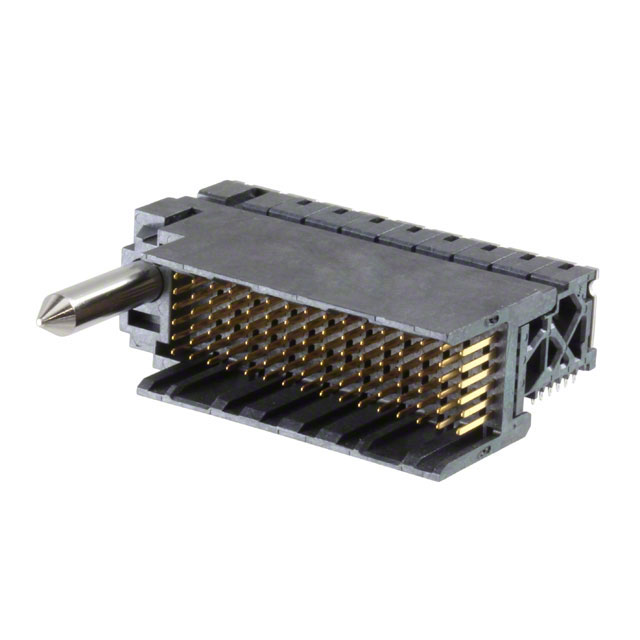

2149376-1
Or copy the link below:
- Mfr.Part #
- 2149376-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER IMPACT 96POS PCB
- Stock
- 11,958
- In Stock ：
- 11,958
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Operating Temperature :
- -55°C~ 85°C
- Housing Material :
- Polymer
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Pitch :
- 1.905mm
- Hole Diameter :
- 381 µm
- Series :
- Impact
- Length - Tail :
- 1.2mm
- Row Spacing :
- 1.35 mm
- Termination :
- Press-Fit
- Min Operating Temperature :
- -67°C
- Make First / Break Last :
- No
- Current Rating (Amps) :
- 0.75A
- Underplate Material :
- Nickel
- Number of Columns :
- 16
- Data Rate :
- 25 Gbps
- Material Flammability Rating :
- UL94 V-0
- Flammability Rating :
- UL94 V-0
- Length :
- 38mm
- Max Operating Temperature :
- 185°C
- Number of Signal Positions :
- 64
- Number of Ground Positions :
- 32
- Orientation :
- Vertical
- RoHS Status :
- RoHS Compliant
- Differential Pairs per Column :
- 2
- Contact Style :
- Press-Fit
- Contact Current Rating :
- 750mA
- Differential Signaling :
- yes
- Packaging :
- Tube
- Plating Thickness :
- 1.27μm
- Factory Lead Time :
- 16 Weeks
- Voltage - Rated :
- 30V
- Height :
- 9.7mm
- Number of Positions :
- 96
- Contact Plating :
- Gold, Tin
- Housing Color :
- Black
- PCB Mounting Orientation :
- Vertical
- PCB Thickness :
- 1.6mm
- Impedance :
- 100Ohm
- Color :
- Black
- Number of Positions Loaded :
- All
- Connector Style :
- Impact, Guide Left
- Mounting Type :
- Through Hole
- Connector Type :
- Header, Male Pins
- Width :
- 33.3mm
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Published :
- 2011
- ELV :
- Compliant
- Stackable :
- No
- Contact Finish :
- Gold
- Number of Rows :
- 6
- Number of Pairs :
- 32
- Datasheets
- 2149376-1
Impact Series Header, Male Pins Press-Fit Gold Black 30.0μin 0.76μm 96 Positions Pitch: 1.905mm -55°C~ 85°C Tube Through Hole
2149376-1 Overview
A Header, Male Pins package is included with it.Its mounting type is Through Hole.Packaging is performed using a Tube case.It is part of the Impact Series of products.Whenever it's below 185°C, it's best to use it.The device must operate at a temperature of -67°C at all times.There is no operating temperature for the device.
2149376-1 Features
Impact series
2149376-1 Applications
There are a lot of TE Connectivity AMP Connectors
2149376-1 Backplane Connectors applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
