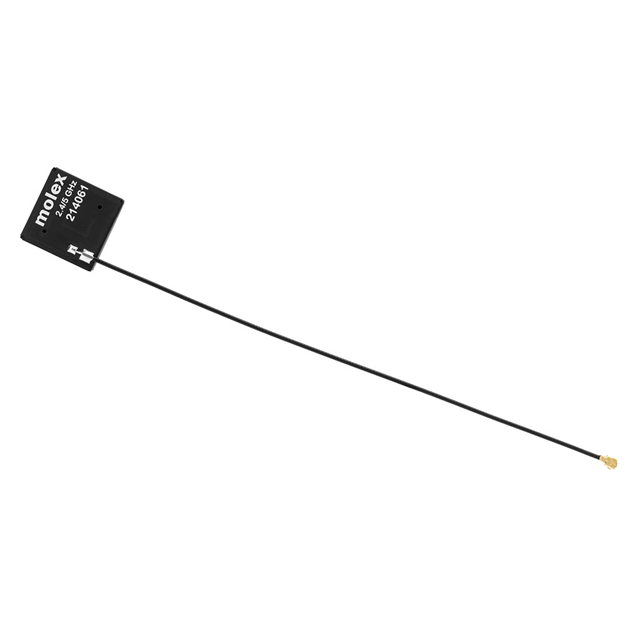

2140610150

Manufacturer :

Molex

Product Category :

RF Antennas

Series :

214061

Frequency Group :

UHF (2GHz ~ 3GHz), SHF (f > 4GHz)

Impedance :

50 Ohms

Number of Bands :

1

Length :

20.2 mm

Gain :

3.8dBi, 6.4dBi

Polarization :

Linear

Product Type :

2.4GHz Antenna - 2.4GHz, 5GHz, Bluetooth, WiFi, WLAN, Zigbee

Termination :

U.FL (UMCC), IPEX MHF1

Power Rating :

2 W

Packaging :

Tray

Frequency Range :

2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz

Package :

Tray

Input Impedance :

50Ohm

Antenna Type :

Flat Patch

Mounting Style :

Adhesive Mount

Subcategory :

Antennas

Type :

Passive Antenna

RF Family/Standard :

802.15.4, Bluetooth, WiFi

Height (Max) :

0.138" (3.50mm)

Center Frequency :

2450 MHz, 5500 MHz

Width :

20.2 mm

Termination Style :

Connector

Product Status :

Active

Cable Length :

150 mm

Features :

Cable - 150mm

Minimum Operating Temperature :

- 40 C

Manufacturer :

Molex

RoHS :

Details

Cable Type :

150 mm Coax

Return Loss :

-6dB, -9dB

Height :

3.5 mm

VSWR :

-

Ingress Protection :

-

Input Power :

2W

Antenna Connector Type :

IPEX MHF

Applications :

Bluetooth, Wi-Fi, Zigbee?

Product Category :

Antennas

Maximum Operating Temperature :

+ 85 C

Base Product Number :

214061

Mounting Type :

Adhesive

Style :

I-Bar Flex

Frequency (Center/Band) :

2.4425GHz, 5.5GHz

Antenna Mounting :

Adhesive

Product :

PCB Antennas

Brand :

Molex
