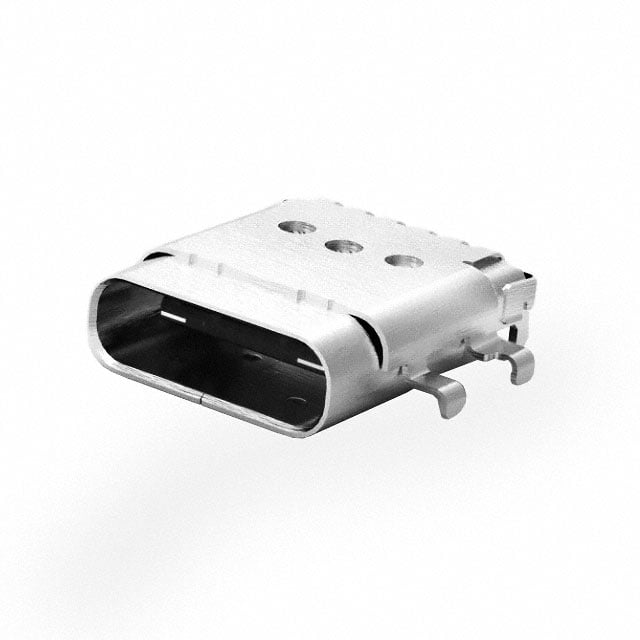

2129691-1
Or copy the link below:
- Mfr.Part #
- 2129691-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT USB3.1 TYPEC 24POS SMD
- Stock
- 8,000
- In Stock ：
- 8,000
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- USB, DVI, HDMI Connector Assemblies
- Material Flammability Rating :
- UL94 V-0
- Plating Thickness :
- 750 nm
- Published :
- 2014
- Length :
- 12.35mm
- Housing Material :
- Thermoplastic
- Contact Finish :
- Gold
- Factory Lead Time :
- 13 Weeks
- Specifications :
- USB 3.1 (USB 3.1 Gen 2, Superspeed+)
- Orientation :
- RIGHT ANGLE
- Connector Type :
- USB-C (USB TYPE-C)
- REACH SVHC :
- Unknown
- Height :
- 2.225mm
- Circuit Application :
- Signal
- Operating Temperature :
- -30°C~85°C
- USB :
- USB 3.1
- Voltage - Rated :
- 30V
- Number of Contacts :
- 24
- Mount :
- Surface Mount
- Contact Material :
- Gold, Nickel
- Contact Current Rating :
- 5A
- Current Rating (Amps) :
- 0.25A 1.25A 5A
- Pitch :
- 500μm
- Packaging :
- Tape and Reel (TR)
- Number of Ports :
- 1
- RoHS Status :
- RoHS Compliant
- Shell/Shielding Material :
- Steel, Stainless
- Mounting Feature :
- Horizontal, Mid Mount
- Mounting Type :
- Board Edge, Cutout; Surface Mount; Through Hole, Right Angle
- Lead Free :
- Lead Free
- Contact Plating :
- Gold, Nickel
- Mating Cycles :
- 10000
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Gender :
- Receptacle
- Insulation Color :
- Black
- Termination :
- Solder
- Datasheets
- 2129691-1
