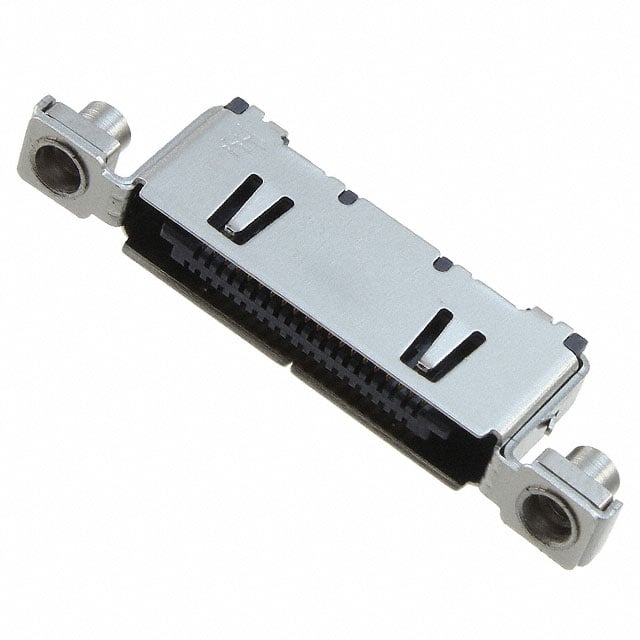

2129260-1
Or copy the link below:
- Mfr.Part #
- 2129260-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- SOIC
- Datasheet
- Download
- Description
- CONN RCPT 40POS R/A SOLDER
- Stock
- 1,570
- In Stock ：
- 1,570
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Centronics Connectors
- Mount :
- Through Hole
- Max Operating Temperature :
- 70°C
- Plating :
- Nickel
- Radiation Hardening :
- No
- Gender :
- FEMALE
- Lead Length :
- 1.524mm
- Current Rating :
- 500mA
- Pitch :
- 609.6μm
- Number of Pins :
- 8
- Termination :
- Solder
- Flange Feature :
- Board Side (M2)
- Package / Case :
- SOIC
- Number of Rows :
- 2
- Connector Type :
- Receptacle
- Number of Positions :
- 40
- Data Rate :
- 30 MBps
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Power Positions :
- 0
- Feature :
- Board Guide, Shielded
- Connector Style :
- Outer Shroud Contacts
- RoHS Status :
- RoHS Compliant
- PCB Mount Retention :
- With
- Contact Finish :
- Gold
- Min Operating Temperature :
- 0°C
- Orientation :
- RIGHT ANGLE
- Packaging :
- Cut Tape (CT)
- Contact Finish Thickness :
- 15.0μin 0.38μm
- Sealable :
- No
- Housing Color :
- Black
- Simplex/Duplex :
- Full Duplex
- Published :
- 2011
- PCB Mounting Orientation :
- RIGHT ANGLE
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Number of Contacts :
- 40
- Operating Supply Current :
- 300μA
- Color :
- Black
- Plating Thickness :
- 380 nm
- Mounting Type :
- Surface Mount, Right Angle; Through Hole
- Factory Lead Time :
- 14 Weeks
- Flammability Rating :
- UL94 V-0
- Number of Ports :
- 1
- Series :
- CHAMP .024
- Receiver Hysteresis :
- 50 mV
- Housing Material :
- Thermoplastic
- Contact Plating :
- Gold
- Shell Material :
- Stainless Steel
- Datasheets
- 2129260-1
2129260-1 datasheet pdf and D-Shaped Connectors - Centronics product details from TE Connectivity AMP Connectors stock available at Xinshop
