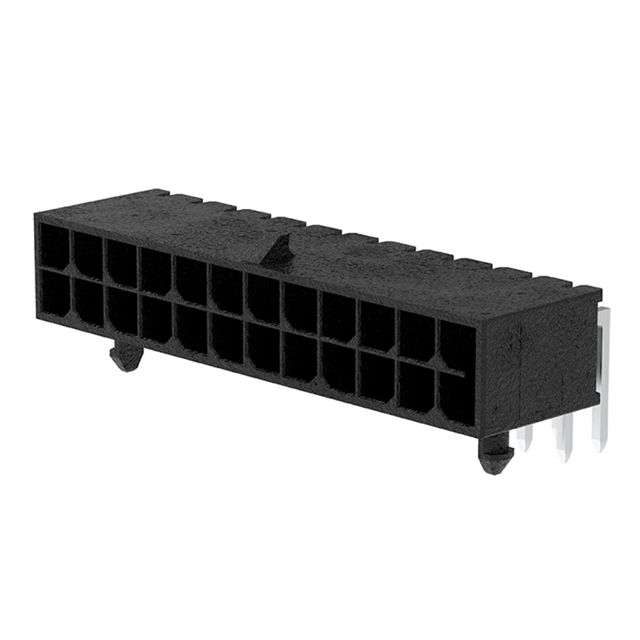

2125282401

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Contact Plating :

Gold

Housing Material :

Liquid Crystal Polymer (LCP)

Number of Positions Loaded :

All

Fastening Type :

Locking Ramp

Termination Post Length :

3.18 mm

Shrouded :

yes

Insulation Color :

Black

Termination Style :

Solder Pin

Housing Color :

Black

Number of Rows :

2 Row

Ingress Protection :

-

Features :

Board Lock

Contact Finish - Mating :

Gold

Contact Finish Thickness - Post :

-

Insulation Material :

Liquid Crystal Polymer (LCP), Glass Filled

Mounting Type :

Through Hole, Right Angle

Contact Material :

COPPER ALLOY

Mounting Style :

Board Lock

RoHS :

Details

Current Rating (Amps) :

Varies by Wire Gauge

Product Status :

Active

Contact Finish Thickness - Mating :

15.0μin (0.38μm)

Current Rating :

12.5 A

Mounting Angle :

RIGHT ANGLE

Contact Gender :

Socket (Female)

Tradename :

Micro-Fit+

Shrouding :

Shrouded - 4 Wall

Product :

Headers

Minimum Operating Temperature :

- 40 C

Mated Stacking Heights :

-

Maximum Operating Temperature :

+ 85 C

Row Spacing - Mating :

0.118 (3.00mm)

Material Flammability Rating :

UL94 V-0

Series :

212528

Number of Positions :

24 Position

Contact Finish - Post :

Tin

Packaging :

Tray

Operating Temperature :

-40°C ~ 105°C

Pitch - Mating :

0.118 (3.00mm)

Contact Type :

Male Pin

Flammability Rating :

UL 94 V-0

Row Spacing :

3 mm

Contact Length - Mating :

-

Style :

Board to Cable/Wire

Pitch :

3 mm

Base Product Number :

212528

Voltage Rating :

600 VAC, 600 VDC

Package :

Tray

Connector Type :

Header

Orientation :

RIGHT ANGLE

Contact Length - Post :

0.125 (3.18mm)

Contact Shape :

Square

Termination :

Solder

Insulation Height :

0.291 (7.40mm)

Overall Contact Length :

-

Applications :

-
