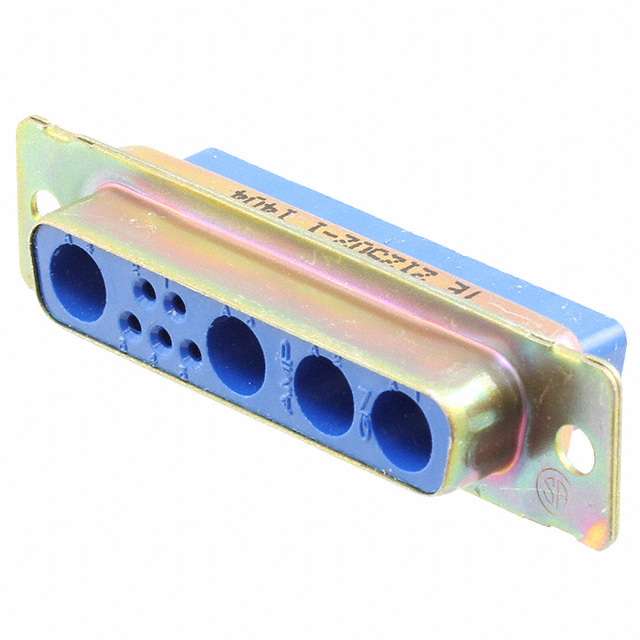

212502-1

Manufacturer :

TE Connectivity Aerospace Defense and Marine

Product Category :

D-Sub, D-Shaped Connector Housings

Wire Gauge (Max) :

18 AWG

RoHS Status :

Non-RoHS Compliant

Gender :

FEMALE

Lead Free :

Contains Lead

Number of Rows :

2

Connector Type :

Receptacle for Female Contacts

Shell Size, Connector Layout :

3 DB B - 9W4

Termination :

Crimp

MIL Conformance :

No

Color :

Blue

IEC Conformance :

No

Note :

Contacts Not Included

Contact Arrangement :

S5C4

Contact Style :

Power

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Connector Style :

D-Sub, Combo

Mount :

Free Hanging, Panel, Through Hole

ELV :

Non-Compliant

Reference Standard :

UL, CSA

Length :

53.03mm

Mixed Contacts :

yes

Reliability :

COMMERCIAL

Series :

AMPLIMITE 109

Hole Diameter :

3.048 mm

Plating :

Cadmium

Published :

2009

Housing Material :

Polyester

Filter Feature :

No

Wire Gauge (Min) :

8 AWG

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Packaging :

Bulk

Pitch :

2.54mm

Flange Feature :

Housing/Shell (Unthreaded)

Mounting Type :

Free Hanging (In-Line)

Shell Material :

Steel

Contact Design :

PREASSEM CONN

Option :

GENERAL PURPOSE

Factory Lead Time :

11 Weeks

DIN Conformance :

No

Number of Contacts :

9

Orientation :

Straight

Number of Positions :

9 (5 + 4 Coax or Power)

Empty Shell :

yes

Depth :

16.68mm

Operating Temperature :

-50°C~125°C

Sealable :

No

Current Rating :

7.5A

Shell Material, Finish :

Steel, Cadmium Plated

Contact Type :

Signal and Coax or Power

Dielectric Material :

Glass
