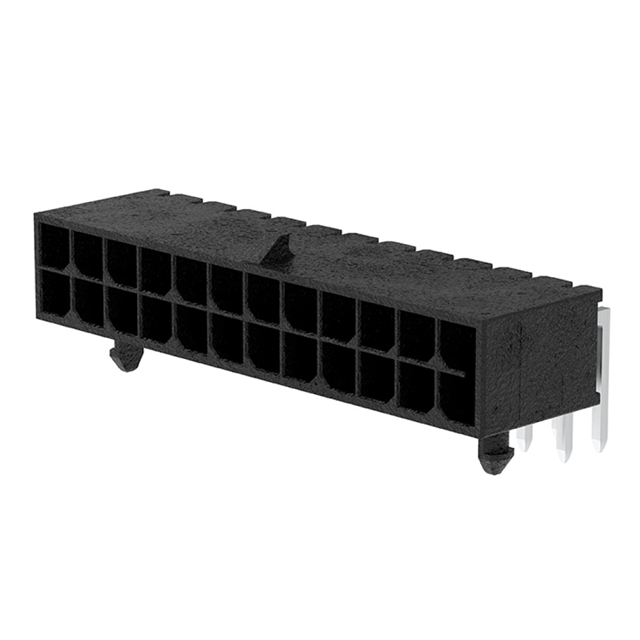

2125282400

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Number of Positions Loaded :

All

Applications :

-

Contact Length - Post :

0.125 (3.18mm)

Tradename :

Micro-Fit+

Mounting Angle :

RIGHT ANGLE

Contact Finish Thickness - Mating :

-

Product Status :

Active

Housing Material :

Liquid Crystal Polymer (LCP)

Mounting Style :

Board Lock

Shrouded :

yes

Contact Material :

COPPER ALLOY

Connector Type :

Header

Current Rating :

12.5 A

Contact Finish Thickness - Post :

-

Insulation Material :

Liquid Crystal Polymer (LCP), Glass Filled

Contact Finish - Mating :

Tin

Series :

212528

Mated Stacking Heights :

-

Fastening Type :

Locking Ramp

Insulation Height :

0.291 (7.40mm)

Mounting Type :

Through Hole, Right Angle

Product :

Headers

Termination Style :

Solder Pin

Packaging :

Tray

Termination :

Solder

Contact Gender :

Socket (Female)

Package :

Tray

Termination Post Length :

3.18 mm

Voltage Rating :

600 VAC, 600 VDC

Contact Type :

Male Pin

Row Spacing - Mating :

0.118 (3.00mm)

Number of Positions :

24 Position

Style :

Board to Cable/Wire

Base Product Number :

212528

RoHS :

Details

Pitch :

3 mm

Flammability Rating :

UL 94 V-0

Housing Color :

Black

Contact Shape :

Square

Contact Finish - Post :

Tin

Row Spacing :

3 mm

Ingress Protection :

-

Maximum Operating Temperature :

+ 85 C

Features :

Board Lock

Operating Temperature :

-40°C ~ 105°C

Contact Length - Mating :

-

Current Rating (Amps) :

Varies by Wire Gauge

Insulation Color :

Black

Material Flammability Rating :

UL94 V-0

Shrouding :

Shrouded - 4 Wall

Orientation :

RIGHT ANGLE

Number of Rows :

2 Row

Minimum Operating Temperature :

- 40 C

Contact Plating :

Tin

Pitch - Mating :

0.118 (3.00mm)

Overall Contact Length :

-
