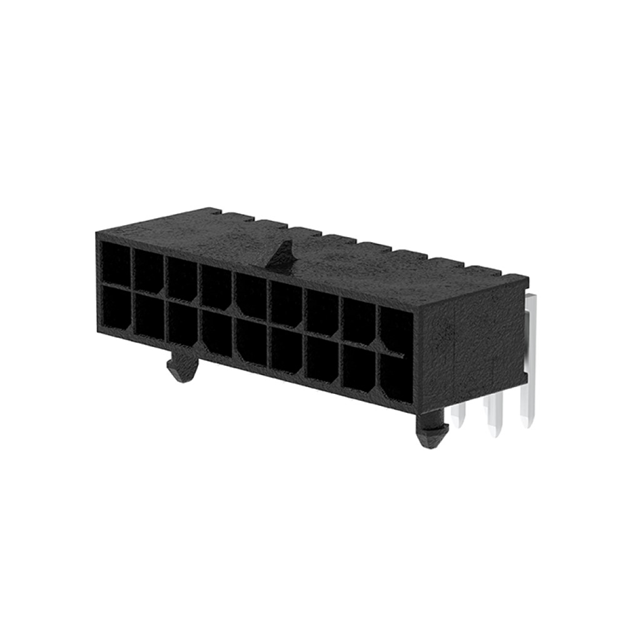

2125281801

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Contact Material :

COPPER ALLOY

Pitch :

3 mm

Flammability Rating :

UL 94 V-0

Minimum Operating Temperature :

- 40 C

Mated Stacking Heights :

-

Fastening Type :

Locking Ramp

Shrouding :

Shrouded - 4 Wall

Tradename :

Micro-Fit+

Overall Contact Length :

-

Connector Type :

Header

Maximum Operating Temperature :

+ 85 C

Features :

Board Lock

Contact Finish - Mating :

Gold

Housing Color :

Black

Current Rating :

12.5 A

Product :

Headers

Base Product Number :

212528

RoHS :

Details

Insulation Height :

0.291 (7.40mm)

Number of Positions Loaded :

All

Product Status :

Active

Row Spacing - Mating :

0.118 (3.00mm)

Current Rating (Amps) :

Varies by Wire Gauge

Contact Finish - Post :

Tin

Mounting Style :

Board Lock

Contact Plating :

Gold

Row Spacing :

3 mm

Voltage Rating :

600 VAC, 600 VDC

Termination Style :

Solder Pin

Contact Length - Mating :

-

Termination Post Length :

3.18 mm

Number of Positions :

18 Position

Termination :

Solder

Contact Shape :

Square

Pitch - Mating :

0.118 (3.00mm)

Mounting Type :

Through Hole, Right Angle

Contact Finish Thickness - Post :

-

Package :

Tray

Material Flammability Rating :

UL94 V-0

Insulation Color :

Black

Applications :

-

Number of Rows :

2 Row

Housing Material :

Liquid Crystal Polymer (LCP)

Orientation :

RIGHT ANGLE

Operating Temperature :

-40°C ~ 105°C

Mounting Angle :

RIGHT ANGLE

Contact Length - Post :

0.125 (3.18mm)

Ingress Protection :

-

Style :

Board to Cable/Wire

Packaging :

Tray

Shrouded :

yes

Contact Finish Thickness - Mating :

15.0μin (0.38μm)

Contact Gender :

Socket (Female)

Contact Type :

Male Pin

Series :

212528

Insulation Material :

Liquid Crystal Polymer (LCP), Glass Filled
