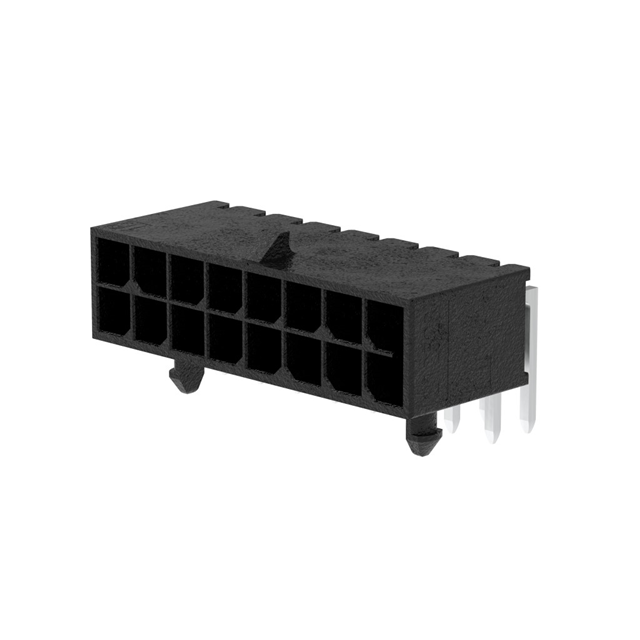

2125281600

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Number of Positions Loaded :

All

Mounting Style :

Board Lock

Contact Finish Thickness - Post :

-

Fastening Type :

Locking Ramp

Connector Type :

Header

Applications :

-

Mounting Angle :

RIGHT ANGLE

Contact Material :

COPPER ALLOY

Package :

Tray

Row Spacing :

3 mm

Features :

Board Lock

RoHS :

Details

Shrouding :

Shrouded - 4 Wall

Series :

212528

Minimum Operating Temperature :

- 40 C

Product :

Headers

Row Spacing - Mating :

0.118 (3.00mm)

Mated Stacking Heights :

-

Contact Shape :

Square

Tradename :

Micro-Fit+

Contact Plating :

Tin

Flammability Rating :

UL 94 V-0

Ingress Protection :

-

Contact Finish - Post :

Tin

Operating Temperature :

-40°C ~ 105°C

Current Rating :

12.5 A

Maximum Operating Temperature :

+ 85 C

Insulation Material :

Liquid Crystal Polymer (LCP), Glass Filled

Termination :

Solder

Number of Positions :

16 Position

Termination Post Length :

3.18 mm

Style :

Board to Cable/Wire

Contact Length - Post :

0.125 (3.18mm)

Insulation Color :

Black

Shrouded :

yes

Packaging :

Tray

Contact Finish Thickness - Mating :

-

Contact Gender :

Socket (Female)

Contact Length - Mating :

-

Voltage Rating :

600 VAC, 600 VDC

Contact Finish - Mating :

Tin

Number of Rows :

2 Row

Product Status :

Active

Overall Contact Length :

-

Insulation Height :

0.291 (7.40mm)

Mounting Type :

Through Hole, Right Angle

Orientation :

RIGHT ANGLE

Material Flammability Rating :

UL94 V-0

Contact Type :

Male Pin

Pitch :

3 mm

Pitch - Mating :

0.118 (3.00mm)

Housing Color :

Black

Base Product Number :

212528

Housing Material :

Liquid Crystal Polymer (LCP)

Current Rating (Amps) :

Varies by Wire Gauge

Termination Style :

Solder Pin
