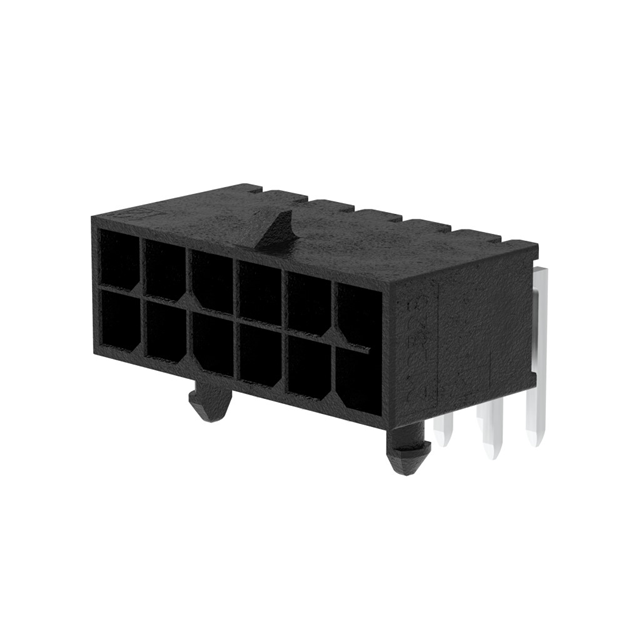

2125281201

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Contact Finish - Mating :

Gold

Contact Plating :

Gold

Mated Stacking Heights :

-

Shrouding :

Shrouded - 4 Wall

Mounting Type :

Through Hole, Right Angle

Contact Type :

Male Pin

Tradename :

Micro-Fit+

Base Product Number :

212528

Insulation Material :

Liquid Crystal Polymer (LCP), Glass Filled

Connector Type :

Header

Voltage Rating :

600 VAC, 600 VDC

Flammability Rating :

UL 94 V-0

Number of Rows :

2 Row

Contact Finish - Post :

Tin

Product :

Headers

Series :

212528

Overall Contact Length :

-

Current Rating (Amps) :

Varies by Wire Gauge

Termination :

Solder

Shrouded :

yes

Contact Material :

COPPER ALLOY

Housing Material :

Liquid Crystal Polymer (LCP)

Number of Positions :

12 Position

Style :

Board to Cable/Wire

Contact Shape :

Square

Contact Gender :

Socket (Female)

Product Status :

Active

Row Spacing :

3 mm

Pitch - Mating :

0.118 (3.00mm)

Row Spacing - Mating :

0.118 (3.00mm)

RoHS :

Details

Current Rating :

12.5 A

Number of Positions Loaded :

All

Pitch :

3 mm

Termination Style :

Solder Pin

Ingress Protection :

-

Applications :

-

Mounting Style :

Board Lock

Contact Length - Post :

0.125 (3.18mm)

Operating Temperature :

-40°C ~ 105°C

Mounting Angle :

RIGHT ANGLE

Material Flammability Rating :

UL94 V-0

Housing Color :

Black

Contact Length - Mating :

-

Fastening Type :

Locking Ramp

Insulation Color :

Black

Package :

Tray

Contact Finish Thickness - Mating :

15.0μin (0.38μm)

Features :

Board Lock

Minimum Operating Temperature :

- 40 C

Termination Post Length :

3.18 mm

Maximum Operating Temperature :

+ 85 C

Insulation Height :

0.291 (7.40mm)

Contact Finish Thickness - Post :

-

Orientation :

RIGHT ANGLE

Packaging :

Tray
