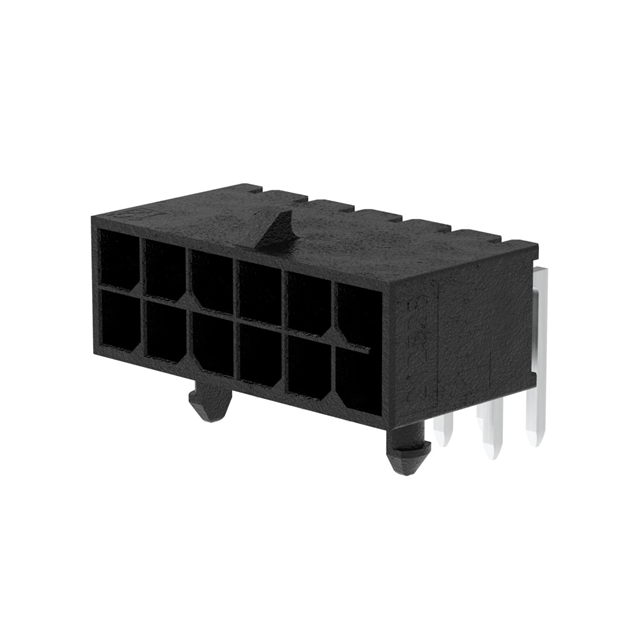

2125281200

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Number of Ports :

1

Termination :

Solder

Current Rating (Amps) :

Varies by Wire Gauge

Mounting :

Through Hole

Overall Contact Length :

-

Mounting Style :

Board Lock

Number of Contacts :

12

Ingress Protection :

-

Product Length :

18.85 mm

Housing Material :

Liquid Crystal Polymer (LCP)

Termination Post Length :

3.18 mm

Mated Stacking Heights :

-

Product Status :

Active

Row Spacing :

3 mm

Mounting Angle :

RIGHT ANGLE

Style :

Board to Cable/Wire

Connector Type :

Header

Voltage Rating Max :

600VDC/600VAC

Termination Style :

Solder Pin

Contact Finish Thickness - Mating :

-

Base Product Number :

212528

Minimum Operating Temperature :

- 40 C

Product Height (mm) :

8.8(mm)

Pitch :

3 mm

Insulation Height :

0.291 (7.40mm)

Housing Color :

Black

Base/Housing Material :

Glass Filled LCP (Liquid Crystal Polymer)

Number of Terminals :

12

Contact Finish - Mating :

Tin

Applications :

-

Packaging :

Tray

Flammability Rating :

UL 94 V-0

Number of Contact Rows :

2

Operating Temp Range :

-40C to 105C

Contact Type :

Male Pin

Insulation Color :

Black

Product Depth (mm) :

12.18(mm)

Contact Finish Thickness - Post :

-

Contact Length - Post :

0.125 (3.18mm)

Operating Temperature :

-40 to 105 °C

Shrouded :

yes

Features :

Board Lock

Type :

Micro-Fit Power

Contact Material :

COPPER ALLOY

Contact Length - Mating :

-

Tradename :

Micro-Fit+

Contact Gender :

Socket (Female)

Number of Positions :

12 Position

Shrouding :

Shrouded - 4 Wall

Package :

Tray

Product Length (mm) :

18.85(mm)

Series :

212528

Current Rating (Max) :

12.5/Contact(A)

Maximum Operating Temperature :

+ 85 C

Row Spacing - Mating :

0.118 (3.00mm)

Orientation :

RIGHT ANGLE

Number of Rows :

2 Row

Body Orientation :

RIGHT ANGLE

RoHS :

Details

Insulation Material :

Liquid Crystal Polymer (LCP), Glass Filled

Number of Positions Loaded :

All

Current Rating :

12.5 A

Contact Resistance Max :

10(mohm)

Mounting Type :

Through Hole, Right Angle

Termination Method :

Solder

Contact Shape :

Square

Material Flammability Rating :

UL94 V-0

Gender :

Header

Pitch (mm) :

3(mm)

Product :

Headers

Pitch - Mating :

0.118 (3.00mm)

Voltage Rating :

600 VAC, 600 VDC

Fastening Type :

Locking Ramp

Contact Plating :

Tin

Contact Finish - Post :

Tin
