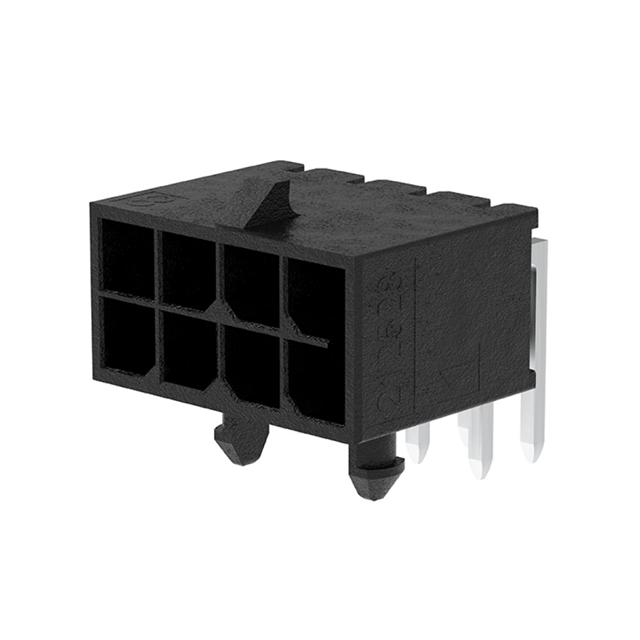

2125280800

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Number of Contact Rows :

2

Tradename :

Micro-Fit+

Number of Positions Loaded :

All

Product Status :

Active

Shrouded :

yes

Body Orientation :

RIGHT ANGLE

Pitch (mm) :

3(mm)

Operating Temp Range :

-40C to 105C

Current Rating (Max) :

12.5/Contact(A)

Mated Stacking Heights :

-

Minimum Operating Temperature :

- 40 C

Termination :

Solder

Voltage Rating Max :

600VDC/600VAC

Contact Finish - Post :

Tin

Overall Contact Length :

-

Contact Length - Mating :

-

Contact Length - Post :

0.125 (3.18mm)

RoHS :

Details

Orientation :

RIGHT ANGLE

Termination Method :

Solder

Contact Shape :

Square

Insulation Material :

Liquid Crystal Polymer (LCP), Glass Filled

Housing Material :

Liquid Crystal Polymer (LCP)

Insulation Color :

Black

Termination Style :

Solder Pin

Number of Positions :

8 Position

Connector Type :

Header

Type :

Wire to Board

Maximum Operating Temperature :

+ 85 C

Product Height (mm) :

8.8(mm)

Contact Finish Thickness - Post :

-

Contact Finish Thickness - Mating :

-

Contact Type :

Male Pin

Series :

212528

Contact Material :

COPPER ALLOY

Pitch - Mating :

0.118 (3.00mm)

Product :

Headers

Product Depth (mm) :

12.18(mm)

Pitch :

3 mm

Gender :

HDR

Number of Rows :

2 Row

Flammability Rating :

UL 94 V-0

Packaging :

Tray

Contact Resistance Max :

10(mohm)

Mounting Type :

Through Hole, Right Angle

Contact Finish - Mating :

Tin

Operating Temperature :

-40°C ~ 105°C

Style :

Board to Cable/Wire

Contact Gender :

Socket (Female)

Features :

Board Lock

Product Length (mm) :

12.85(mm)

Material Flammability Rating :

UL94 V-0

Fastening Type :

Locking Ramp

Number of Contacts :

8(POS)

Applications :

-

Current Rating :

12.5 A

Shrouding :

Shrouded - 4 Wall

Insulation Height :

0.291 (7.40mm)

Housing Color :

Black

Base Product Number :

212528

Contact Plating :

Tin

Mounting Style :

Board Lock

Termination Post Length :

3.18 mm

Row Spacing - Mating :

0.118 (3.00mm)

Voltage Rating :

600 VAC, 600 VDC

Mounting Angle :

RIGHT ANGLE

Package :

Box

Current Rating (Amps) :

Varies by Wire Gauge

Row Spacing :

3 mm

Ingress Protection :

-
