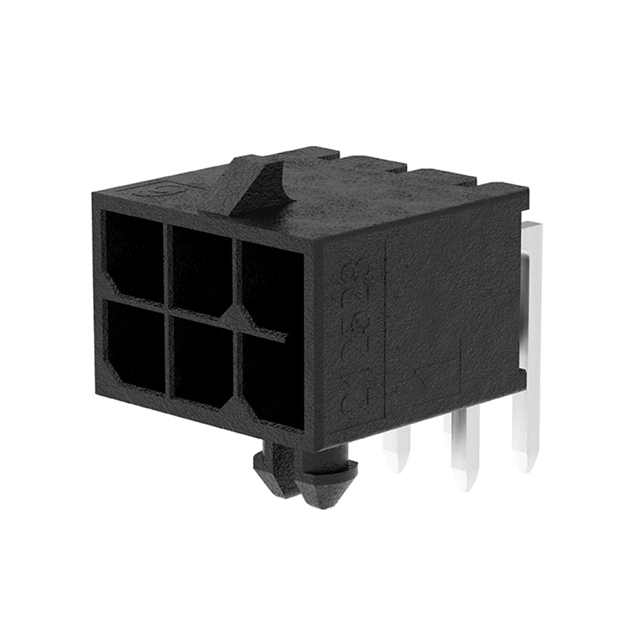

2125280601

Manufacturer :

Molex

Product Category :

Headers, Male Pins

RoHS :

Details

Row Spacing - Mating :

0.118 (3.00mm)

Product Status :

Active

Termination Post Length :

3.18 mm

Contact Finish - Post :

Tin

Contact Gender :

Socket (Female)

Operating Temperature :

-40°C ~ 105°C

Housing Material :

Liquid Crystal Polymer (LCP)

Contact Material :

COPPER ALLOY

Connector Type :

Header

Series :

212528

Material Flammability Rating :

UL94 V-0

Contact Length - Mating :

-

Row Spacing :

3 mm

Maximum Operating Temperature :

+ 85 C

Product :

Headers

Tradename :

Micro-Fit+

Packaging :

Tray

Features :

Board Lock

Base Product Number :

212528

Number of Positions :

6 Position

Contact Plating :

Gold

Mounting Style :

Board Lock

Contact Length - Post :

0.125 (3.18mm)

Minimum Operating Temperature :

- 40 C

Fastening Type :

Locking Ramp

Contact Shape :

Square

Orientation :

RIGHT ANGLE

Current Rating :

12.5 A

Insulation Color :

Black

Mated Stacking Heights :

-

Contact Finish Thickness - Post :

-

Mounting Angle :

RIGHT ANGLE

Insulation Height :

0.291 (7.40mm)

Overall Contact Length :

-

Shrouding :

Shrouded - 4 Wall

Package :

Tray

Number of Positions Loaded :

All

Contact Type :

Male Pin

Current Rating (Amps) :

Varies by Wire Gauge

Insulation Material :

Liquid Crystal Polymer (LCP), Glass Filled

Pitch :

3 mm

Number of Rows :

2 Row

Shrouded :

yes

Termination Style :

Solder Pin

Applications :

-

Mounting Type :

Through Hole, Right Angle

Pitch - Mating :

0.118 (3.00mm)

Contact Finish - Mating :

Gold

Housing Color :

Black

Flammability Rating :

UL 94 V-0

Ingress Protection :

-

Termination :

Solder

Voltage Rating :

600 VAC, 600 VDC

Style :

Board to Cable/Wire

Contact Finish Thickness - Mating :

15.0μin (0.38μm)
