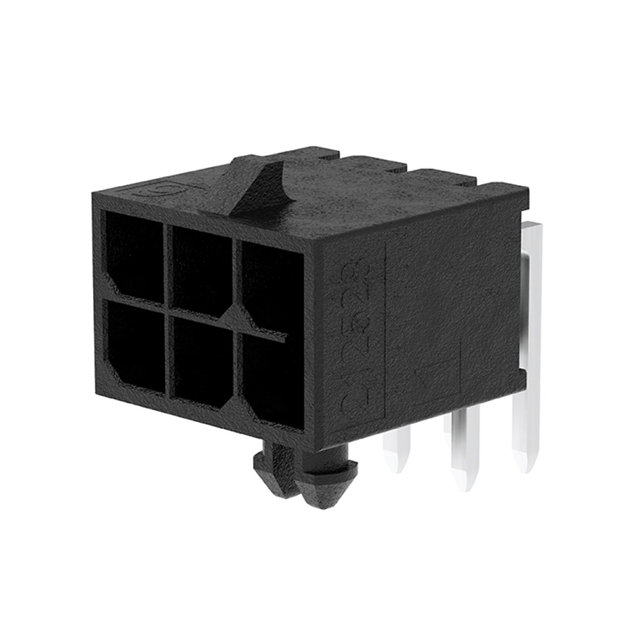

2125280600

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Number of Positions :

6 Position

Features :

Board Lock

Product :

Headers

Contact Length - Mating :

-

Packaging :

Tray

Current Rating :

12.5 A

Maximum Operating Temperature :

+ 85 C

Pitch - Mating :

0.118 (3.00mm)

Operating Temp Range :

-40C to 105C

Termination :

Solder

Applications :

-

Current Rating (Max) :

12.5/Contact(A)

Housing Material :

Liquid Crystal Polymer (LCP)

Shrouded :

yes

Number of Contact Rows :

2

Contact Gender :

Socket (Female)

Current Rating (Amps) :

Varies by Wire Gauge

Contact Material :

COPPER ALLOY

Product Status :

Active

Row Spacing - Mating :

0.118 (3.00mm)

Termination Method :

Solder

Style :

Board to Cable/Wire

Connector Type :

Header

Contact Finish Thickness - Post :

-

Orientation :

RIGHT ANGLE

Insulation Material :

Liquid Crystal Polymer (LCP), Glass Filled

Voltage Rating :

600 VAC, 600 VDC

Contact Shape :

Square

Contact Finish - Mating :

Tin

Pitch (mm) :

3(mm)

Contact Type :

Male Pin

Contact Finish - Post :

Tin

Contact Plating :

Tin

Product Length (mm) :

9.85(mm)

Ingress Protection :

-

Insulation Height :

0.291 (7.40mm)

Contact Length - Post :

0.125 (3.18mm)

Housing Color :

Black

RoHS :

Details

Mounting Style :

Board Lock

Package :

Tray

Mounting Type :

Through Hole, Right Angle

Voltage Rating Max :

600VDC/600VAC

Product Height (mm) :

8.8(mm)

Gender :

HDR

Row Spacing :

3 mm

Number of Contacts :

6(POS)

Mounting Angle :

RIGHT ANGLE

Shrouding :

Shrouded - 4 Wall

Termination Style :

Solder Pin

Operating Temperature :

-40°C ~ 105°C

Pitch :

3 mm

Insulation Color :

Black

Product Depth (mm) :

12.18(mm)

Contact Resistance Max :

10(mohm)

Material Flammability Rating :

UL94 V-0

Base Product Number :

212528

Fastening Type :

Locking Ramp

Body Orientation :

RIGHT ANGLE

Series :

212528

Flammability Rating :

UL 94 V-0

Minimum Operating Temperature :

- 40 C

Type :

Wire to Board

Number of Positions Loaded :

All

Overall Contact Length :

-

Contact Finish Thickness - Mating :

-

Tradename :

Micro-Fit+

Mated Stacking Heights :

-

Number of Rows :

2 Row

Termination Post Length :

3.18 mm
