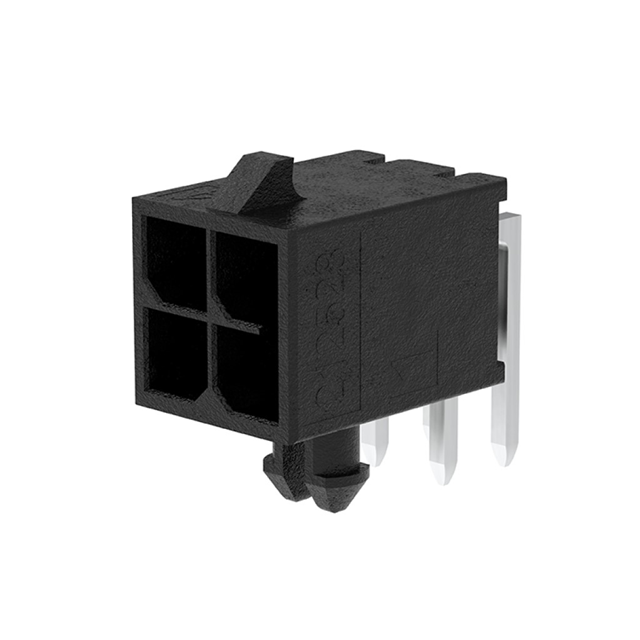

2125280400

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Mated Stacking Heights :

-

Fastening Type :

Locking Ramp

Termination Post Length :

3.18 mm

Current Rating (Amps) :

Varies by Wire Gauge

Row Spacing - Mating :

0.118 (3.00mm)

Contact Material :

COPPER ALLOY

Housing Color :

Black

Number of Positions Loaded :

All

Current Rating (Max) :

12.5/Contact(A)

Base Product Number :

212528

Pitch :

3 mm

Product Status :

Active

Series :

212528

Housing Material :

Liquid Crystal Polymer (LCP)

Contact Finish - Post :

Tin

Voltage Rating :

600 VAC, 600 VDC

Contact Shape :

Square

Operating Temp Range :

-40C to 105C

Tradename :

Micro-Fit+

Current Rating :

12.5 A

Contact Resistance Max :

10(mohm)

Number of Contacts :

4(POS)

Contact Finish Thickness - Mating :

-

Applications :

-

Flammability Rating :

UL 94 V-0

RoHS :

Details

Connector Type :

Header

Product Length (mm) :

6.85(mm)

Contact Finish - Mating :

Tin

Type :

Wire to Board

Operating Temperature :

-40°C ~ 105°C

Contact Length - Mating :

-

Ingress Protection :

-

Overall Contact Length :

-

Gender :

HDR

Insulation Material :

Liquid Crystal Polymer (LCP), Glass Filled

Number of Positions :

4 Position

Orientation :

RIGHT ANGLE

Mounting Style :

Board Lock

Shrouding :

Shrouded - 4 Wall

Package :

Tray

Features :

Board Lock

Contact Length - Post :

0.125 (3.18mm)

Termination Style :

Solder Pin

Termination Method :

Solder

Voltage Rating Max :

600VDC/600VAC

Shrouded :

yes

Body Orientation :

RIGHT ANGLE

Contact Finish Thickness - Post :

-

Mounting Type :

Through Hole, Right Angle

Insulation Color :

Black

Material Flammability Rating :

UL94 V-0

Minimum Operating Temperature :

- 40 C

Packaging :

Tray

Pitch (mm) :

3(mm)

Product Depth (mm) :

12.18(mm)

Contact Type :

Male Pin

Pitch - Mating :

0.118 (3.00mm)

Number of Contact Rows :

2

Product :

Headers

Maximum Operating Temperature :

+ 85 C

Mounting Angle :

RIGHT ANGLE

Number of Rows :

2 Row

Termination :

Solder

Row Spacing :

3 mm

Product Height (mm) :

8.8(mm)

Style :

Board to Cable/Wire

Contact Gender :

Socket (Female)

Contact Plating :

Tin

Insulation Height :

0.291 (7.40mm)
