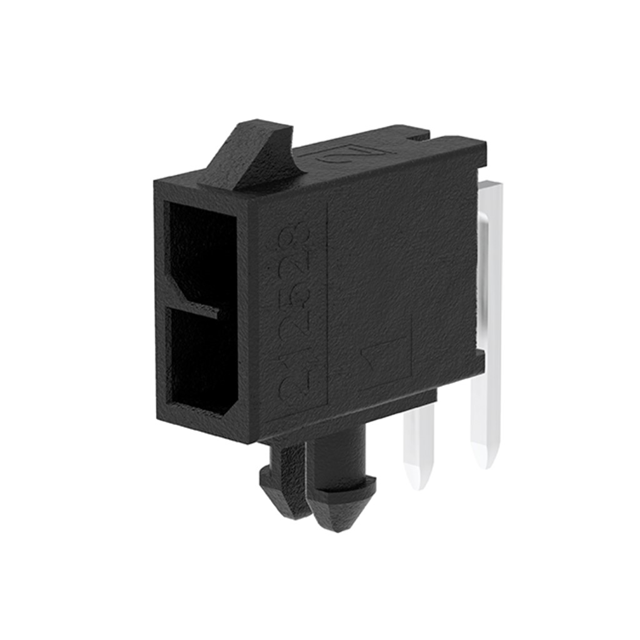

2125280201

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Product Status :

Active

Housing Material :

Liquid Crystal Polymer (LCP)

Insulation Material :

Liquid Crystal Polymer (LCP), Glass Filled

Minimum Operating Temperature :

- 40 C

Current Rating (Amps) :

Varies by Wire Gauge

Tradename :

Micro-Fit+

Shrouded :

yes

Contact Shape :

Square

Mounting Type :

Through Hole, Right Angle

Voltage Rating :

600 VAC, 600 VDC

Type :

SHROUDED

Connector Type :

Header

Insulation Color :

Black

Current Rating :

12.5 A

Series :

212528

Contact Type :

Male Pin

Ingress Protection :

-

Number of Positions :

2 Position

Number of Positions Loaded :

All

Contact Length - Post :

0.125 (3.18mm)

Overall Contact Length :

-

Applications :

-

Number of Rows :

2 Row

Fastening Type :

Locking Ramp

Insulation Height :

0.291 (7.40mm)

Base Product Number :

212528

Row Spacing :

3 mm

Operating Temperature :

-40°C ~ 105°C

Pitch :

3 mm

Contact Length - Mating :

-

Mounting Style :

Through Hole

Termination Style :

Solder Pin

RoHS :

Details

Package :

Tray

Contact Gender :

Pin (Male)

Packaging :

Tray

Application :

Power, Wire-to-Board

Maximum Operating Temperature :

+ 85 C

Contact Finish - Mating :

Gold

Shrouding :

Shrouded - 4 Wall

Contact Finish Thickness - Post :

-

Orientation :

RIGHT ANGLE

Mounting Angle :

RIGHT ANGLE

Product :

Headers

Termination :

Solder

Row Spacing - Mating :

0.118 (3.00mm)

Housing Color :

Black

Pitch - Mating :

-

Features :

Board Lock

Flammability Rating :

UL 94 V-0

Contact Material :

COPPER ALLOY

Mated Stacking Heights :

-

Contact Finish Thickness - Mating :

15.0μin (0.38μm)

Contact Plating :

Gold

Style :

Board to Cable/Wire

Termination Post Length :

3.18 mm

Contact Finish - Post :

Tin

Material Flammability Rating :

UL94 V-0
