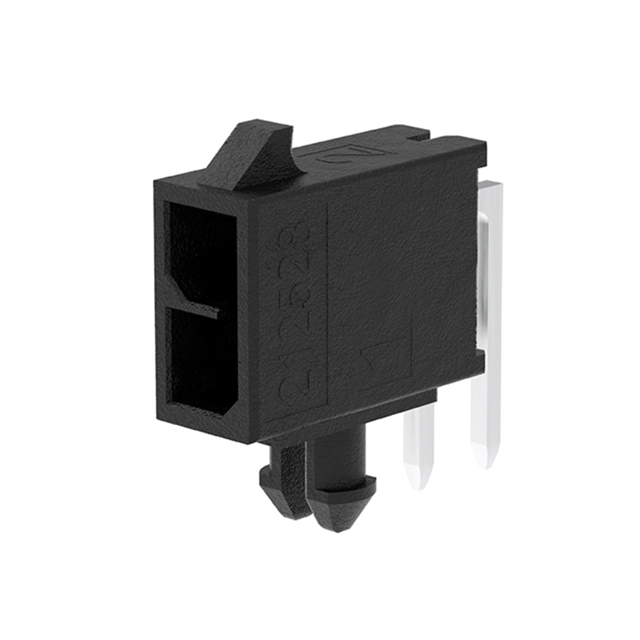

2125280200

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Voltage Rating Max :

600VDC/600VAC

Product :

Headers

Number of Positions :

2 Position

Body Orientation :

RIGHT ANGLE

Style :

Board to Cable/Wire

Termination Post Length :

3.18 mm

Connector Type :

Header

Packaging :

Tray

Operating Temperature :

-40°C ~ 105°C

Number of Rows :

2 Row

Contact Length - Post :

0.125 (3.18mm)

Current Rating :

12.5 A

Operating Temp Range :

-40C to 105C

Contact Type :

Male Pin

Contact Resistance Max :

10(mohm)

Termination Method :

Solder

Mated Stacking Heights :

-

Contact Finish - Mating :

Tin

Contact Material :

COPPER ALLOY

Series :

212528

Shrouding :

Shrouded - 4 Wall

Pitch (mm) :

3(mm)

Row Spacing :

3 mm

Contact Finish Thickness - Mating :

-

Contact Finish - Post :

Tin

Contact Finish Thickness - Post :

-

Termination :

Solder

Pitch - Mating :

-

Housing Color :

Black

Contact Length - Mating :

-

Current Rating (Max) :

12.5/Contact(A)

Number of Positions Loaded :

All

Type :

SHROUDED

Material Flammability Rating :

UL94 V-0

Shrouded :

yes

Overall Contact Length :

-

Fastening Type :

Locking Ramp

Minimum Operating Temperature :

- 40 C

Flammability Rating :

UL 94 V-0

Contact Gender :

Pin (Male)

Housing Material :

Liquid Crystal Polymer (LCP)

Product Status :

Active

Product Length (mm) :

3.85(mm)

Insulation Height :

0.291 (7.40mm)

Applications :

-

Insulation Material :

Liquid Crystal Polymer (LCP), Glass Filled

Number of Contact Rows :

2

Application :

Power, Wire-to-Board

Product Height (mm) :

8.8(mm)

Mounting Type :

Through Hole, Right Angle

RoHS :

Details

Number of Contacts :

2(POS)

Mounting Style :

Through Hole

Contact Plating :

Tin

Row Spacing - Mating :

0.118 (3.00mm)

Termination Style :

Solder Pin

Insulation Color :

Black

Mounting Angle :

RIGHT ANGLE

Tradename :

Micro-Fit+

Base Product Number :

212528

Pitch :

3 mm

Orientation :

RIGHT ANGLE

Ingress Protection :

-

Package :

Tray

Gender :

HDR

Maximum Operating Temperature :

+ 85 C

Voltage Rating :

600 VAC, 600 VDC

Features :

Board Lock

Current Rating (Amps) :

Varies by Wire Gauge

Contact Shape :

Square

Product Depth (mm) :

12.18(mm)
