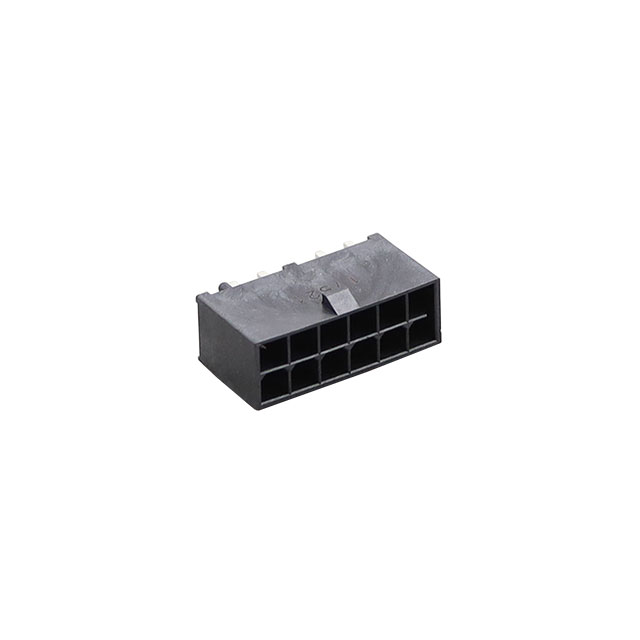

2125201012

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Connector Type :

Header

Current Rating (Amps) :

20A per Contact

Mounting Type :

Through Hole

Flammability Rating :

UL 94 V-0

Style :

Board to Cable/Wire

Mounting Style :

PCB Mount

RoHS :

Details

Overall Contact Length :

-

Number of Rows :

2 Row

Termination Style :

Solder Pin

Housing Material :

Liquid Crystal Polymer (LCP)

Contact Plating :

Tin

Contact Material :

COPPER ALLOY

Insulation Height :

0.535 (13.60mm)

Number of Positions :

12 Position

Contact Finish - Mating :

Tin

Current Rating :

20 A

Voltage Rating :

600 V

Ingress Protection :

-

Termination :

Solder

Row Spacing :

4.2 mm

Pitch :

4.2 mm

Applications :

-

Features :

Board Guide

Shrouding :

Shrouded - 4 Wall

Packaging :

Tray

Body Orientation :

Vertical

Contact Finish Thickness - Mating :

-

Maximum Operating Temperature :

+ 105 C

Number of Positions Loaded :

All

Insulation Color :

Black

Minimum Operating Temperature :

- 40 C

Contact Finish Thickness - Post :

-

Contact Type :

Male Pin

Pitch - Mating :

0.165 (4.20mm)

Tradename :

Mini-Fit Max

Mounting Angle :

Straight

Contact Length - Mating :

-

Material Flammability Rating :

UL94 V-0

Package :

Tray

Contact Finish - Post :

Tin

Product :

Headers

Series :

212520

Material :

COPPER ALLOY

Contact Gender :

Socket (Female)

Product Status :

Active

Number of Contacts :

12

Fastening Type :

Locking Ramp

Housing Color :

Black

Contact Length - Post :

0.144 (3.66mm)

Insulation Material :

Liquid Crystal Polymer (LCP)

Mated Stacking Heights :

-

Color :

Black

Row Spacing - Mating :

0.165 (4.20mm)

Operating Temperature :

-40°C ~ 105°C

Base Product Number :

212520

Contact Shape :

Square
