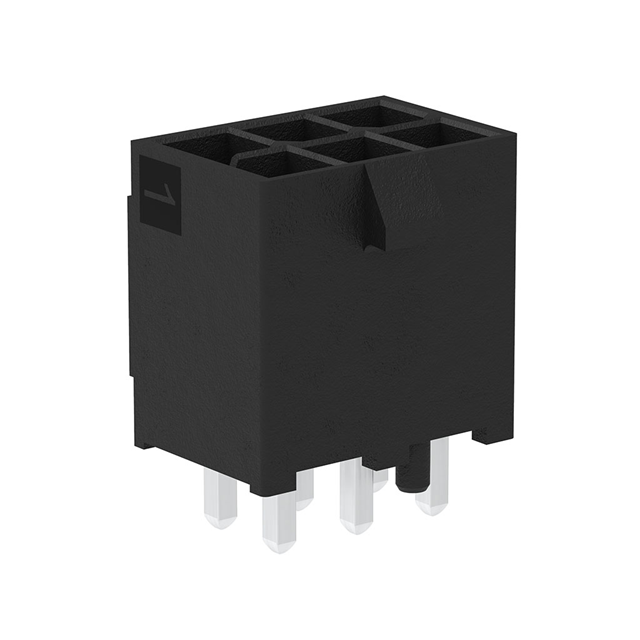

2125201006

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Contact Length - Mating :

-

Product :

Headers

Shrouding :

Shrouded - 4 Wall

Minimum Operating Temperature :

- 40 C

RoHS :

Details

Ingress Protection :

-

Voltage Rating :

600 V

Pitch :

4.2 mm

Maximum Operating Temperature :

+ 105 C

Material :

COPPER ALLOY

Row Spacing - Mating :

0.165 (4.20mm)

Contact Finish - Mating :

Tin

Package :

Tray

Termination :

Solder

Tradename :

Mini-Fit Max

Features :

Board Guide

Mounting Angle :

Straight

Mounting Type :

Through Hole

Contact Plating :

Tin

Housing Material :

Liquid Crystal Polymer (LCP)

Insulation Material :

Liquid Crystal Polymer (LCP)

Number of Rows :

2 Row

Current Rating :

20 A

Connector Type :

Header

Number of Positions Loaded :

All

Pitch - Mating :

0.165 (4.20mm)

Overall Contact Length :

-

Number of Contacts :

6

Termination Style :

Solder Pin

Packaging :

Tray

Contact Finish - Post :

Tin

Insulation Height :

0.535 (13.60mm)

Flammability Rating :

UL 94 V-0

Contact Type :

Male Pin

Contact Shape :

Square

Mated Stacking Heights :

-

Body Orientation :

Vertical

Insulation Color :

Black

Row Spacing :

4.2 mm

Contact Gender :

Socket (Female)

Base Product Number :

212520

Contact Length - Post :

0.144 (3.66mm)

Housing Color :

Black

Mounting Style :

PCB Mount

Operating Temperature :

-40°C ~ 105°C

Series :

212520

Current Rating (Amps) :

20A per Contact

Contact Material :

COPPER ALLOY

Number of Positions :

6 Position

Material Flammability Rating :

UL94 V-0

Style :

Board to Cable/Wire

Product Status :

Active

Contact Finish Thickness - Mating :

-

Fastening Type :

Locking Ramp

Contact Finish Thickness - Post :

-

Applications :

-

Color :

Black
