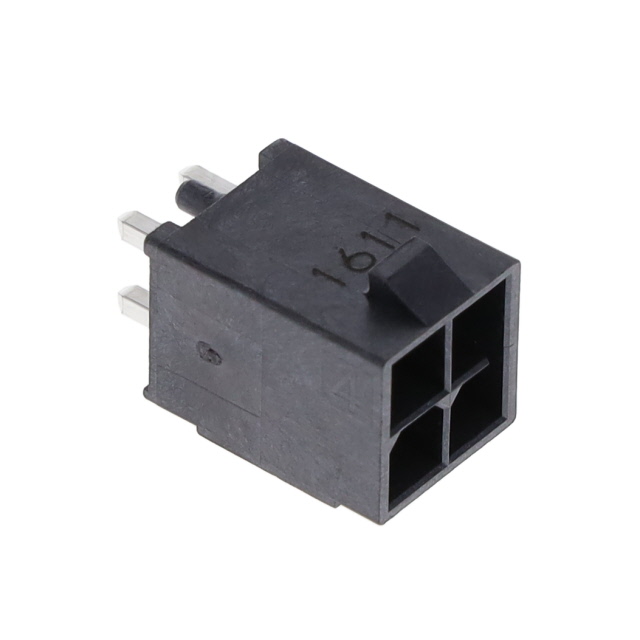

2125201004

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Shrouding :

Shrouded - 4 Wall

Maximum Operating Temperature :

+ 105 C

Style :

Board to Cable/Wire

Insulation Material :

Liquid Crystal Polymer (LCP)

Pitch :

4.2 mm

Termination :

Solder

Row Spacing :

4.2 mm

Current Rating :

20 A

Product :

Headers

Insulation Height :

0.535 (13.60mm)

Ingress Protection :

-

Contact Finish - Post :

Tin

Contact Finish - Mating :

Tin

Termination Style :

Solder Pin

Body Orientation :

Vertical

Number of Rows :

2 Row

Contact Finish Thickness - Post :

-

Product Status :

Active

Material :

COPPER ALLOY

Packaging :

Tray

Package :

Tray

Contact Length - Mating :

-

Housing Color :

Black

Insulation Color :

Black

Current Rating (Amps) :

20A per Contact

Features :

Board Guide

Contact Plating :

Tin

Number of Positions Loaded :

All

Base Product Number :

212520

Number of Contacts :

4

RoHS :

Details

Series :

212520

Mounting Type :

Through Hole

Applications :

-

Contact Type :

Male Pin

Connector Type :

Header

Contact Finish Thickness - Mating :

-

Contact Material :

COPPER ALLOY

Pitch - Mating :

0.165 (4.20mm)

Flammability Rating :

UL 94 V-0

Material Flammability Rating :

UL94 V-0

Number of Positions :

4 Position

Fastening Type :

Locking Ramp

Housing Material :

Liquid Crystal Polymer (LCP)

Tradename :

Mini-Fit Max

Mounting Style :

PCB Mount

Voltage Rating :

600 V

Mated Stacking Heights :

-

Color :

Black

Minimum Operating Temperature :

- 40 C

Row Spacing - Mating :

0.165 (4.20mm)

Mounting Angle :

Straight

Overall Contact Length :

-

Contact Gender :

Socket (Female)

Contact Length - Post :

0.144 (3.66mm)

Contact Shape :

Square

Operating Temperature :

-40°C ~ 105°C
