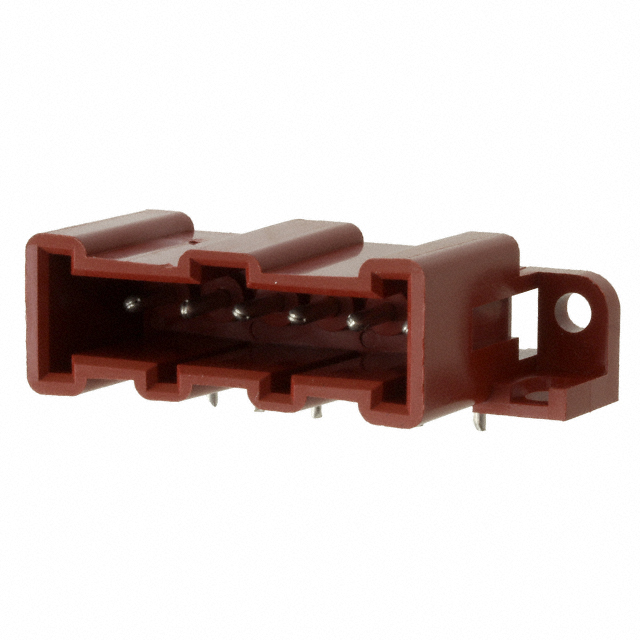

208116-1
Or copy the link below:
- Mfr.Part #
- 208116-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 6POS 5.08MM
- Stock
- 2
- In Stock ：
- 2
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Contact Current Rating :
- 7.5A
- Insulation Color :
- Red
- Operating Temperature :
- -55°C~130°C
- Orientation :
- RIGHT ANGLE
- Contact Finish - Mating :
- Tin-Lead
- Number of Conductors :
- ONE
- Body Breadth :
- 0.55 inch
- Fastening Type :
- Latch Holder
- DIN Conformance :
- No
- Shrouding :
- Shrouded - 4 Wall
- Terminal Pitch :
- 5.08mm
- Pitch - Mating :
- 0.200 5.08mm
- Height :
- 13.97mm
- Number of Rows :
- 1
- Lead Free :
- Contains Lead
- Additional Feature :
- POLARIZED, LATCH
- Contact Finish Thickness - Mating :
- 150.0μin 3.81μm
- Contact Type :
- Male Pin
- Termination :
- Solder
- VDE Tested :
- yes
- Number Of PCB Rows :
- 1
- Reliability :
- COMMERCIAL
- Depth :
- 23.88mm
- Lead Pitch :
- 3.5mm
- Contact Length - Post :
- 0.120 3.05mm
- PCB Thickness :
- 1.6002mm
- Pbfree Code :
- No
- Contact Finish Thickness - Post :
- 150.0μin 3.81μm
- Radiation Hardening :
- No
- IEC Conformance :
- No
- Polarization Key :
- POLARIZED HOUSING
- Mount :
- Through Hole
- Applications :
- Automotive, General Purpose, Industrial
- Gender :
- Male
- Series :
- Metrimate
- Empty Shell :
- No
- UL Flammability Code :
- 94V-0
- Style :
- Board to Board or Cable
- Contact Plating :
- Copper, Lead, Tin
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Max Voltage Rating (AC) :
- 600V
- Mixed Contacts :
- No
- Length :
- 48.26mm
- Approval Agency :
- UL
- Filter Feature :
- No
- Factory Lead Time :
- 11 Weeks
- Contact Shape :
- Circular
- Insulation Height :
- 0.550 13.97mm
- Length - Tail :
- 3.05mm
- Number of Positions Loaded :
- All
- Contact Material :
- Brass
- Insulation Material :
- Thermoplastic
- Flammability Rating :
- UL94 V-0
- Number of Positions :
- 6
- MIL Conformance :
- No
- Connector Type :
- Header
- Mounting Type :
- Through Hole, Right Angle
- Published :
- 2008
- Width :
- 23.876mm
- Packaging :
- Tube
- PCB Mounting Orientation :
- RIGHT ANGLE
- Feature :
- Mounting Flange
- Shell Material :
- POLYETHYLENE
- Material Flammability Rating :
- UL94 V-0
- ELV :
- Non-Compliant
- RoHS Status :
- Non-RoHS Compliant
- Current Rating :
- 14A
- Datasheets
- 208116-1
208116-1 Documents
Metrimate Series 1-Row Header Solder Brass Tube Through Hole, Right Angle Tin-Lead Thermoplastic 6-Position Board to Board or Cable 0.550 13.97mm Height
208116-1 Overview
A Header package is included with it.Its mounting type is Through Hole, Right Angle.Packaging is performed using a Tube case.It is part of the Metrimate Series of products.Additionally, there are other features, such as POLARIZED, LATCH.It is possible for the device to be used for the application Automotive, General Purpose, Industrial.A number of features make it more powerful because of its Mounting Flange feature.Through Hole mounts the part.There is no operating temperature for the device.
208116-1 Features
Metrimate series
208116-1 Applications
There are a lot of TE Connectivity AMP Connectors
208116-1 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
