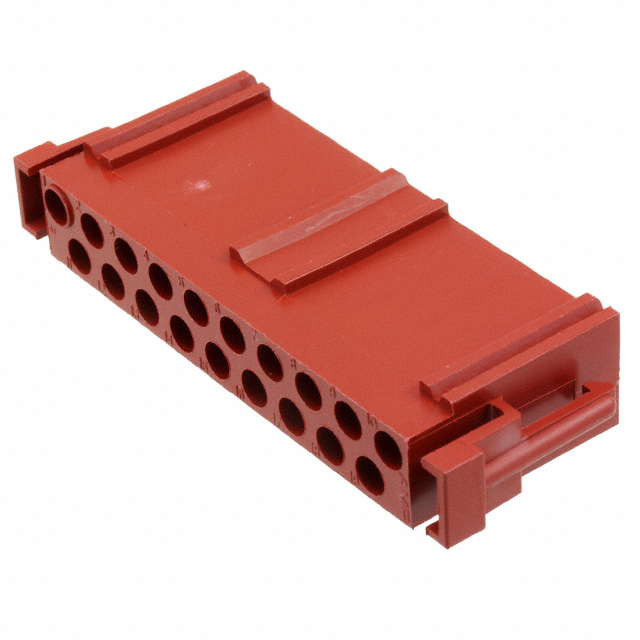

208100-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Rectangular Connector Housings

Operating Supply Voltage :

600V

ECCN Code :

EAR99

Empty Shell :

yes

Contact Style :

RND PIN-SKT

Option :

GENERAL PURPOSE

HTS Code :

8536.69.40.30

Connector Type :

PLUG

Mount :

Cable, Free Hanging

Additional Feature :

POLARIZED, LATCH

Min Operating Temperature :

-55°C

Polarization Key :

POLARIZED HOUSING

Series :

Metrimate

Reliability :

COMMERCIAL

Housing Color :

Red

Width :

14.22mm

Color :

Black or Red

Note :

Contacts Not Included

Flammability Rating :

UL94 V-0

Lead Free :

Not Applicable

Factory Lead Time :

18 Weeks

Number of Positions :

19

Row Spacing :

0.200 (5.08mm)

Pitch :

0.098 2.50mm

Published :

1997

Length :

74.9mm

Lifecycle Status :

ACTIVE (Last Updated: 4 months ago)

Wire/Cable Type :

Discrete

Orientation :

Straight

Number of Rows :

2

VDE Tested :

yes

Packaging :

Bulk

Depth :

28.19mm

IEC Conformance :

No

Max Voltage Rating (AC) :

600V

DIN Conformance :

No

Gender :

Male

Total Number of Contacts :

19

Housing Material :

Nylon

RoHS Status :

RoHS Compliant

Max Operating Temperature :

130°C

Termination :

Solder

Mounting Type :

Free Hanging (In-Line)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Filter Feature :

No

Body Breadth :

0.56 inch

Approval Agency :

UL

Mixed Contacts :

No

Pbfree Code :

yes

UL Flammability Code :

94V-0

MIL Conformance :

No

Radiation Hardening :

No

ELV :

Compliant

Fastening Type :

Latch Lock

Shell Material :

POLYETHYLENE
